Philips Unite LED 3000 Series LED Solutions
27HDL3015IP/00

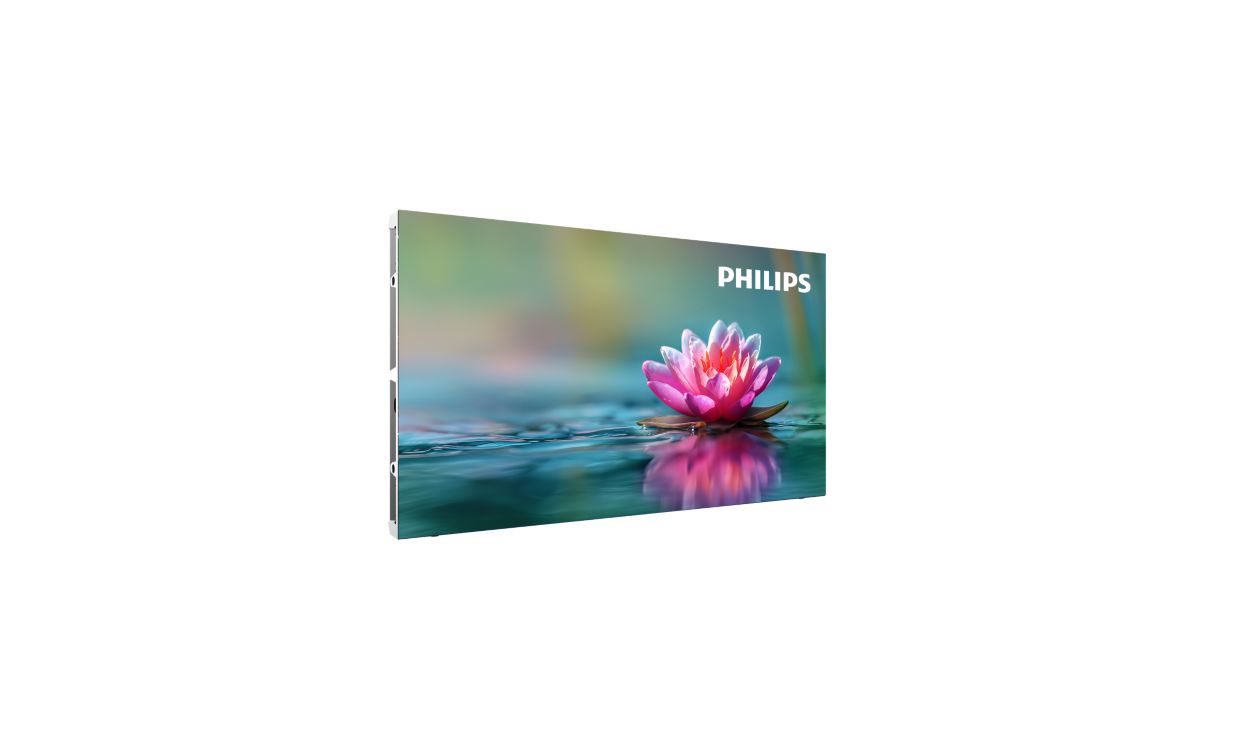

Philips Unite LED 3000 Series
The Philips Unite 3000 Series redefines back to basics LED performance. Easy on your bottom line and on the eye, bringing better picture quality, better colour uniformity, and better refresh rates to truly stand out from the competition.
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Philips Unite LED 3000 Series LED Solutions
Similar products
See all L-Line seriesOptions for 0.9 / 1.2 / 1.5 / 1.8 pp for ultra sharp visuals
With a 3840 Hz refresh Philips Unite LED 3000 Series panels deliver flicker free, seamless visuals – easy on the eye and great for fast moving content and live feeds. 600 nits brightness brings easy to see content to life in a wide range of settings.
Optimised design for lower power consumption.
Vibrant colours, deep blacks, and uniform brightness create an immersive visual experience, ideal for high impact professional settings. Cool common cathodes bring stability, reliability, and higher definition together with lower energy consumption for reduced cost of ownership.
Factory calibration for consistency across modules.
Factory calibration guarantees uniform brightness and colour accuracy across all modules. The result? Consistent image quality that maintains brand integrity and professional standards at any scale. Ideal for bringing revenue generating advertising on board.
Wide colour range for accuracy and depth that stands out.
With a colour gamut of 96% for a wider and more accurate range of colours, the Philips Unite 3000 Series brings enhanced gradients, eliminates banding, and brings content to life with more detail and realism.
Easy to clean, dust protected and splash resistant.
Designed for flexibility, the brightness control and performance tuning features within the Philips Unite LED 3000 Series simplify integration and operation, adapting to lighting and content needs and delivering content without compromise. Easy to clean, with a smooth surface, the Philips Unite 3000 Series incorporates IP54 dust protection and water resistancy to the front, and IP31 to the back of each panel. Front access makes servicing and maintenance easier, with each of the modules in a cabinet able to be removed easily, and direct access to power supply, hub board, and wiring.
Technical Specifications
-
Picture/Display
- Brightness (nits)
- 600 nit
- Brightness Uniformity
- ≥95%
- Calibration(brightness/color)
- Color
- Color temperature adjust range
- 3000-10000K
- Color temperature default
- 9300K±200
- Contrast ratio
- 10000:1
- Bit-depth(bit)
- 13+3 by software
- Frame frequency (Hz)
- 50 & 60 Hz
- Refresh rate(Hz)
- 3840 Hz
- Colour uniformity
- ±0.003 Cx,Cy
- Colour coordinates
- x:0.285±0.003, y:0.293±0.003
- Viewing angle (°) H/V
- 160°
-
Power
- Input voltage
- AC 100–240V (50/60 Hz)
- Max. power cons. AC (W)
- 57W
- Typical power cons. (W)
- 19W
- BTU/M2
- <960
-
Operating conditions
- Temperature range (operation)
- -10 to 40 °C
- Temperature range (storage)
- -20 to 60° °C
- Humidity range (operation)[RH]
- 10%-90%RH
- Humidity range (storage) [RH]
- 10%-90%RH
- Working environment (indoor/outdoor)
- Indoor
-
Cabinet
- Cabinet area (m2)
- 0.2052 m²
- Cabinet resolution (W x H)
- 384x216 mm
- Data connector
- RJ45
- Power connector
- 3-pin locking Reunion
- Receving card brand
- Novastar
- Weight (KG)
- 4.0±0.4 kg
- Cabinet diagonal (inch)
- 27"
- Cabinet construction
- Die-casting aluminum
- Cabinet Size (WxHxD in mm)
- 600x337.5x39.75mm (+0.1/-0.1)
-
Module
- LED type
- COB
- Pixel constitution
- RGB Flip Chip
- LED lifetime(Hrs)
- 100,000 hours (half brightness)
- Module resolution (WxH pixels)
- 96x108
- Pixel pitch (mm)
- 1.5625
- Module size (WxH in mm)
- 150x168.75mm (+0.05/-0.05)
- Flatness
- ≤0.1 mm
-
Miscellaneous
- Warranty
- 3 years
- Regulatory approvals
-
- CE
- ETL
- FCC
- RoHS
- CB
- WEEE
- CA RoHS
- CA65
- Reach
-
- Spare modules CTN
- 9HDL3093IM/00 9HDL3012IM/00 9HDL3015IM/00 9HDL3118IM/00
-
Packaging Data
- Package size (WxHxD mm)
- 750 x 410 x 140 mm
- Gross weight
- 5 kg
- Net weight
- 4 kg
