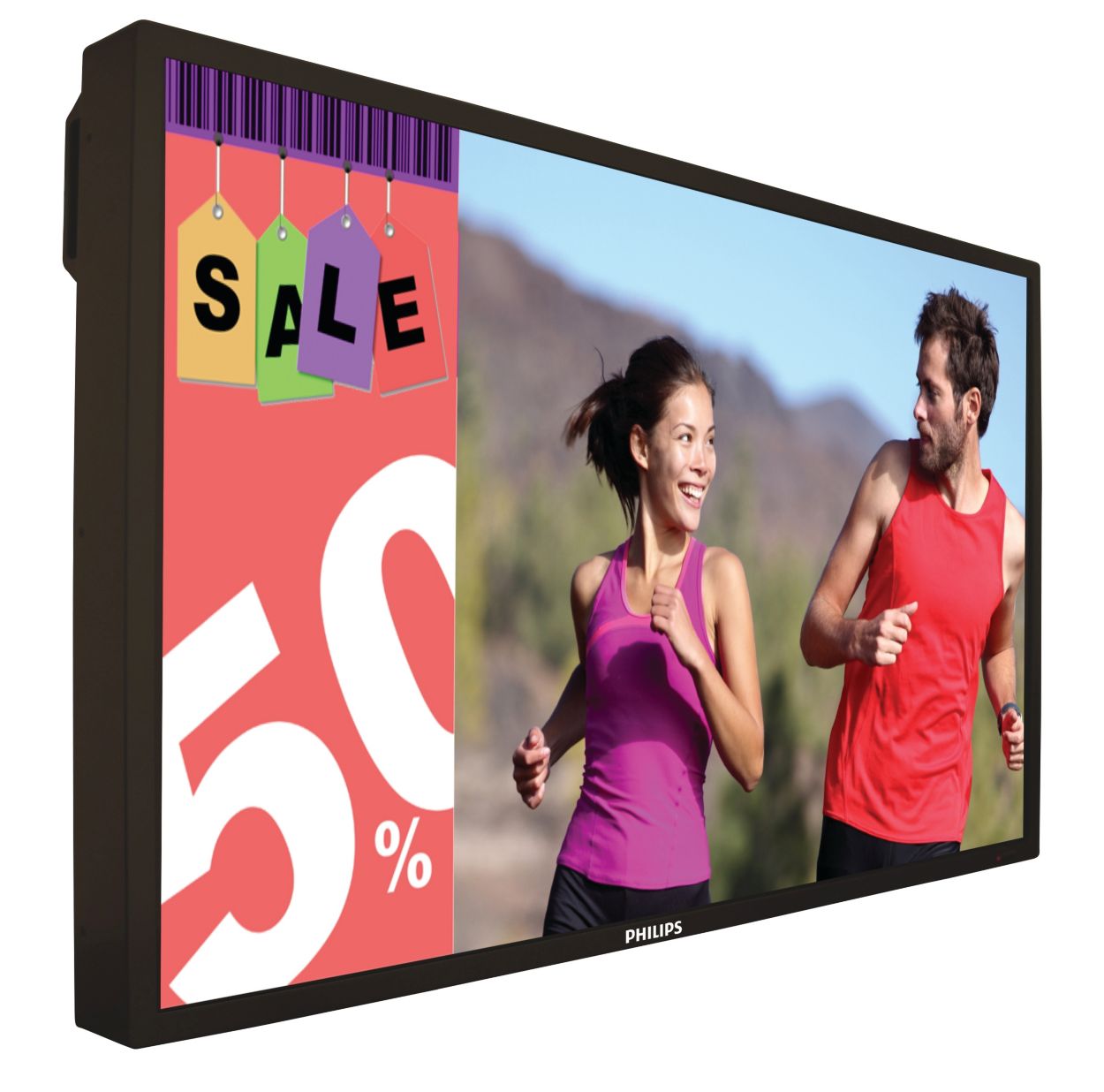

Signage Display

BDL4771V/00

Deliver your messages in style

Enjoy the unique combination of stunning picture quality and high performance which delivers your marketing messages to your audience to get you noticed.

See all benefits

Unfortunately this product is no longer available

Signage Display

Similar products

See all Unmapped

Deliver your messages in style

with this high performance display

  • 119 cm (47")
  • Full HD
DVI Daisy Chain

DVI Daisy Chain

Create a digital video wall of up to 150 displays in a 15 x 10 configuration with a DVI daisy chain. Simply connect the DVI Out port to a DVI in of another display to create the most stunning video wall experience around.

SmartPower for energy saving

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Many Functions. One Wire

Take full control of your display by running all operational commands as well as your video signal through just one single HDMI cable. This unique feature makes it so much easier and more convenient to ensure the smooth running and maintenance of your display. Consumer Electronics Control (CEC) commands make finding out vital information about your display absolute childsplay.

Network Controllability: RJ45

Simple management of your display is available thanks to the introduction of a LAN (RJ45) port. You can configure each display or find out the status of each device quickly and conveniently via an RJ45 connection.

Display Port for faster graphics support

Enjoy crystal clear images with the high-bandwidth graphics support of the Display Port. As well as transmitting full high-definition video the Display Port will also transmit audio, thus eliminating the need for extra cables.

Full HD LCD display, 1920x1080p

This display has a resolution that is referred to as Full HD. The state-of-the-art LCD screen technology has the full high-definition widescreen resolution of 1080 progressive lines, each with 1920 pixels. This allows the best possible picture quality for HD input signals with up to 1080 lines. It produces brilliant flicker-free progressive scan pictures with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Slim bezel design for a stylish look

A slim bezel design adds a stylish look to a public display to nicely blend in just about any environment. Furthermore this design makes the display ideal for tiled matrix video walls.

Smart insert in the backcover to place a small pc

Professional PC's are part of most public signage installations. Quite often they increase the overall depth to the display and cause a lot of cable clutter. So we have designed this display with Smart insert in the back cover which is ideal for the integration of a professional small form factor PC. On top of that, the cable management system offers a great solution to keep your cables neat and professional looking.

VGA Loopthrough

Connect multiple displays to create a video wall of up to 150 displays via a VGA daisy chain thus enhancing your visual experience. With no additional hardware required, they are as simple to installl as they are captivating to your audience.

Enhanced zoom feature supports tiled matrix applications

The internal zoom function enables easy implementation of a video wall matrix, without the need for expensive external equipment. Capable of many different configurations, creating a stunning video wall has become simplicity itself.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    119.4  cm
    Diagonal screen size (inch)
    47  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.54 x 0.54 mm
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    700  cd/m²
    Display colors
    1.07 billion colors
    Contrast ratio (typical)
    1200:1
    Response time (typical)
    9  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • Motion compens. deinterlacing
    • Progressive scan
    • Dynamic contrast enhancement
  • Connectivity

    PC
    • VGA-in D-Sub 15HD
    • VGA-out D-Sub 15HD
    • RJ45
    • RS232 D-Sub9
    • RS232 D-sub9 output
    AV input
    • DVI-D x1
    • Component (BNC) x1
    AV output
    Audio (L/R) x1
    Other connections
    • Display Port
    • DVI Out
    • USB
    • HDMI
    • AC-out
  • Convenience

    Placement
    • Portrait
    • Landscape
    Picture in picture
    • PBP
    • PIP
    • POP
    Tiled Matrix
    Up to 5 x 5
    Keyboard control
    • Hidden
    • Lockable
    Remote control signal
    Lockable
    Signal loop through
    • DVI
    • VGA
    • RS232
    Energy saving functions
    • Ambient light sensor
    • Smart Power
    Network controllable
    • RS232
    • RJ45
    Packaging
    Reusable box
  • Sound

    Built-in speakers
    2 x 12W (RMS)
  • Power

    Consumption (On mode)
    Typ. 155W
    Standby power consumption
    <1W
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 1024 x 768, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 1024, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1440 x 900, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    Video formats
    • 480i, 60Hz
    • 480p, 60Hz
    • 576p, 50Hz
    • 576i, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
  • Dimensions

    Bezel thickness
    20mm
    Set Width
    1080  mm
    Product weight
    29  kg
    Set Height
    625.2  mm
    Set Depth
    127  mm
    Set Width (inch)
    41.6  inch
    Set Height (inch)
    23.0  inch
    Wall Mount
    200 x 400 mm
    Set Depth (inch)
    5.1  inch
    Product weight (lb)
    63.9  lb
  • Operating conditions

    Temperature range (operation)
    0 - 40  °C
    MTBF
    60,000  hour(s)
    Relative humidity
    5 - 90  %
  • Accessories

    Included accessories
    • Remote Control
    • Batteries for remote control
    • AC Power Cord
    • VGA cable
    • User manual on CD-ROM
    • Quick start guide
    Optional accessories
    Table top stand
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Italian
    • Polish
    • Turkish
    • Russian
    • Simplified Chinese
    Warranty
    Global 3 year warranty
    Regulatory approvals
    • CE
    • FCC, Class B
    • UL/cUL
    • CCC
    • RoHS
  • Packaging dimensions

    EAN
    87 12581 65062 9
    Number of products included
    1
    Packaging type
    Carton

What's in the box?

Other items in the box

  • Remote Control
  • Batteries for remote control
  • AC Power Cord
  • VGA cable
  • User manual on CD-ROM
  • Quick start guide
  • Optional accessories: Table top stand
