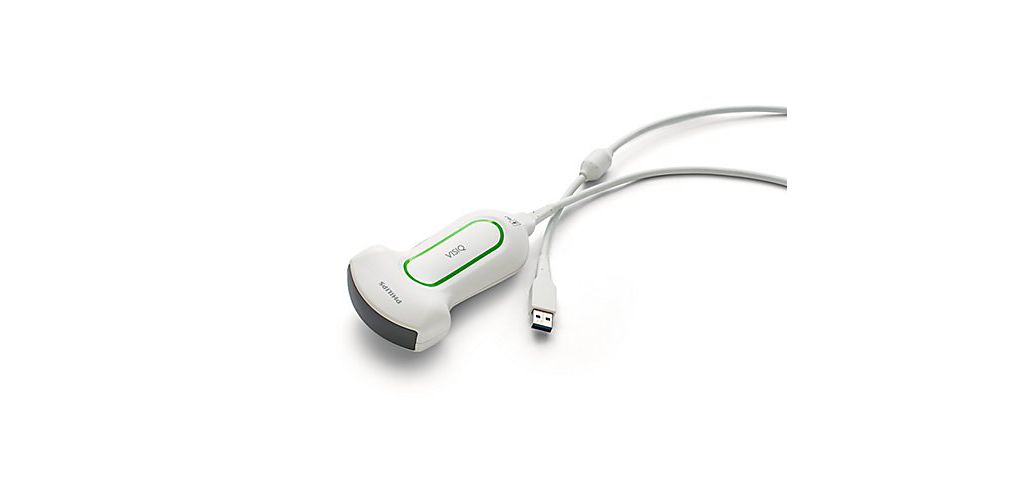

C5-2 USB

Curved array transducer

Find similar products

Learn more about the Philips C5-2 USB curved array transducer in the specification table below.

Features
Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband
Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128
Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz
  • Technology: Broadband
  • Number of elements: 128
  • Frequency range: 5-2 MHz
See all features
Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband

Technology: Broadband
Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128

Number of elements: 128
Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Frequency range: 5-2 MHz

Specifications

Specifications
Specifications
Technology
  • Broadband
Number of elements
  • 128
Frequency range
  • 5 - 2 MHz
Array Type
  • Curved
Aperture
  • 50mm radius of curvature (the curved transducer’s equivalent to a linear aperture)
Field of view
  • 67.5°
Volume of field of view
  • N/A
Modes
  • Supports 2D, M-mode, color, PW Doppler, Tissue Harmonic Imaging
Applications
  • Abdominal and Ob/Gyn
Biopsy capable
  • Yes
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
Specifications
Specifications
Technology
  • Broadband
Number of elements
  • 128
See all specifications
Specifications
Specifications
Technology
  • Broadband
Number of elements
  • 128
Frequency range
  • 5 - 2 MHz
Array Type
  • Curved
Aperture
  • 50mm radius of curvature (the curved transducer’s equivalent to a linear aperture)
Field of view
  • 67.5°
Volume of field of view
  • N/A
Modes
  • Supports 2D, M-mode, color, PW Doppler, Tissue Harmonic Imaging
Applications
  • Abdominal and Ob/Gyn
Biopsy capable
  • Yes
Image Fusion Navigation capable
  • No
Physical dimensions
  • -
