DigitalDiagnost
Digital radiography solutions
DigitalDiagnost
Digital radiography solutions
Experience premium digital radiography productivity, with high performance rooms and flexible rooms right through to a cutting edge emergency set-up. Choose the configuration suited to your applications, workflow and budget.

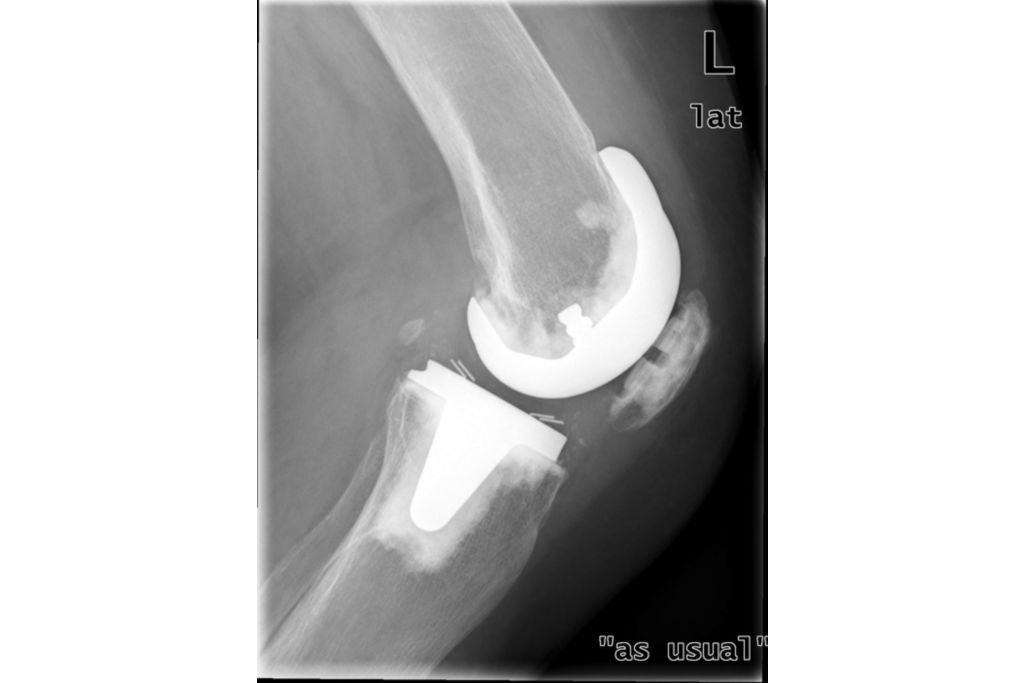

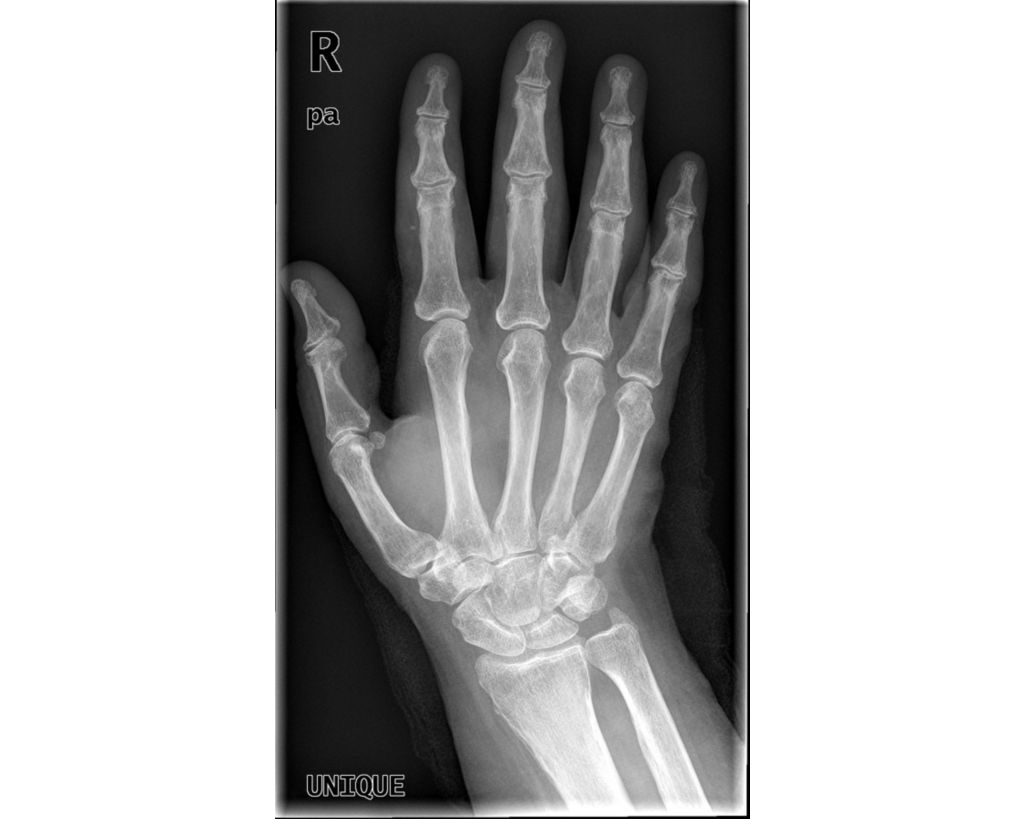

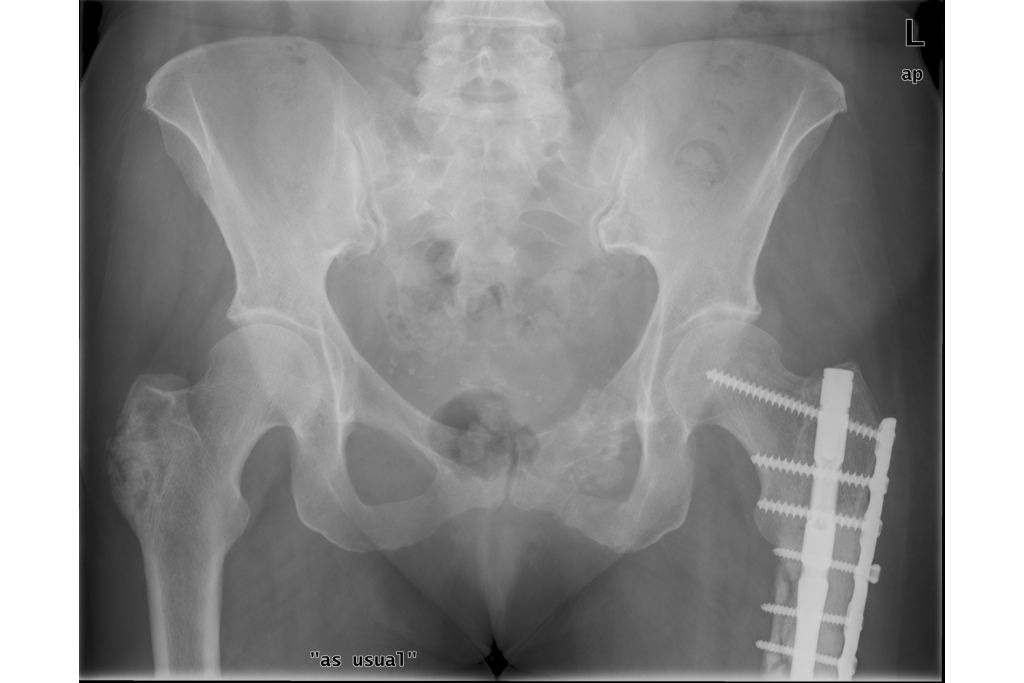

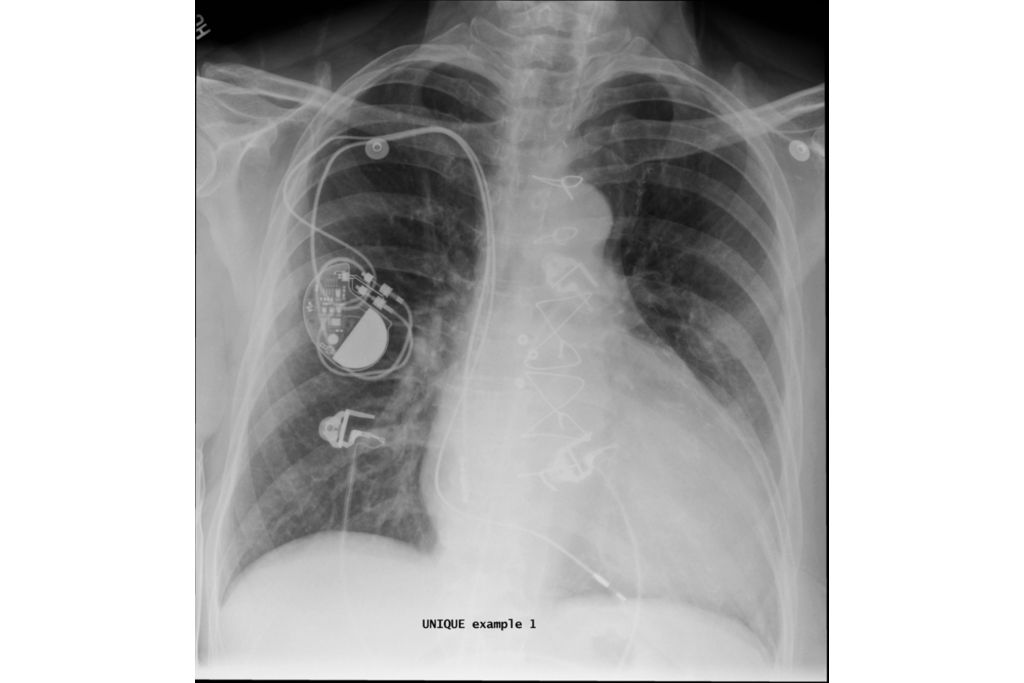

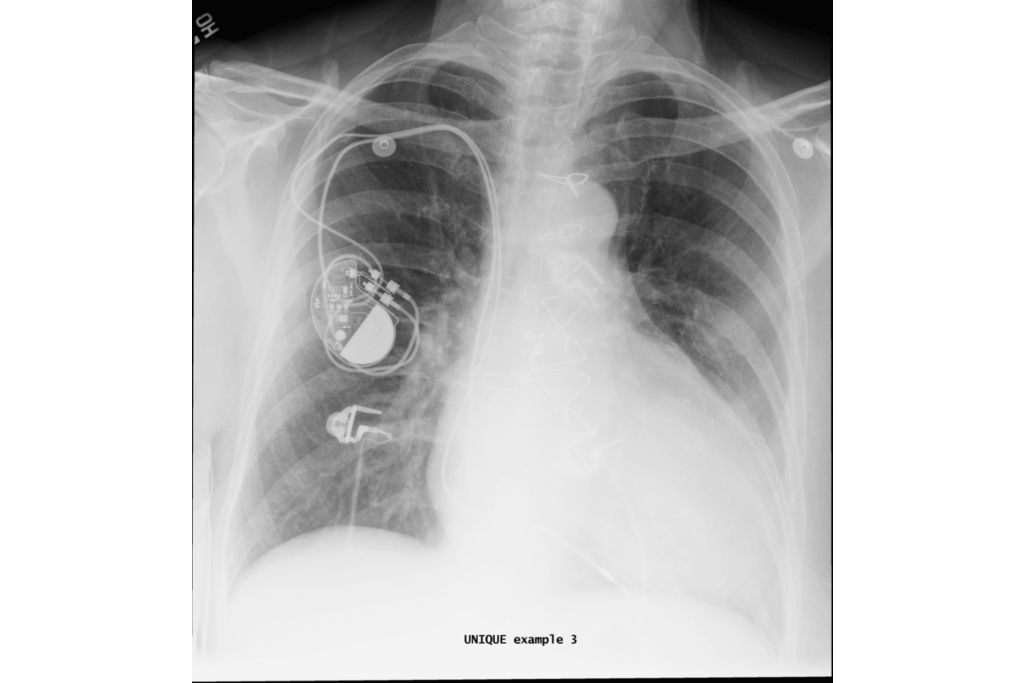

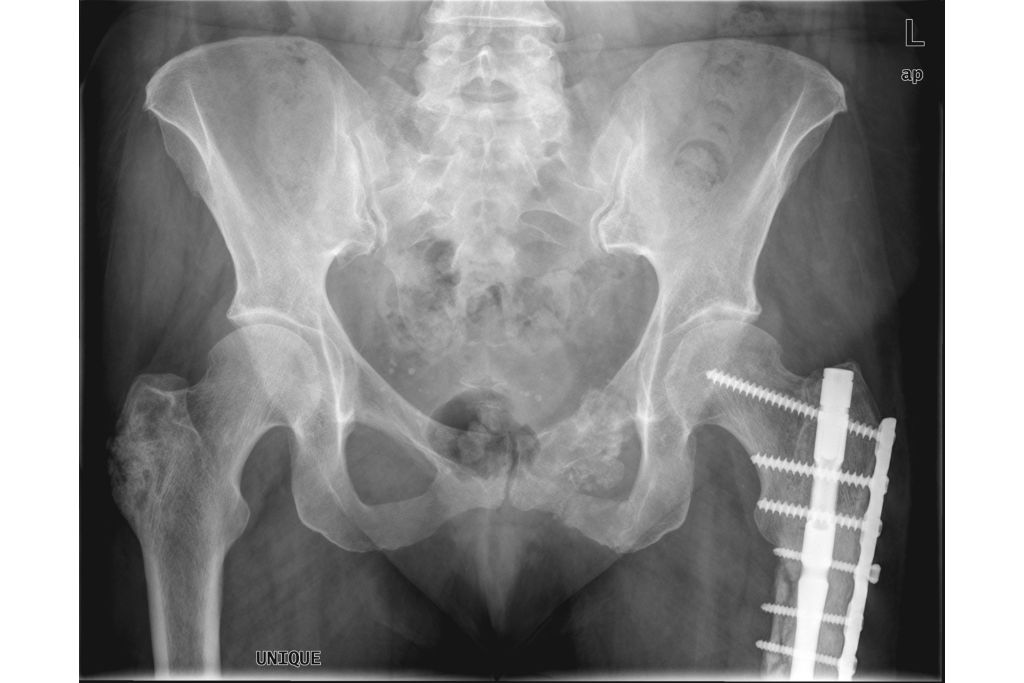

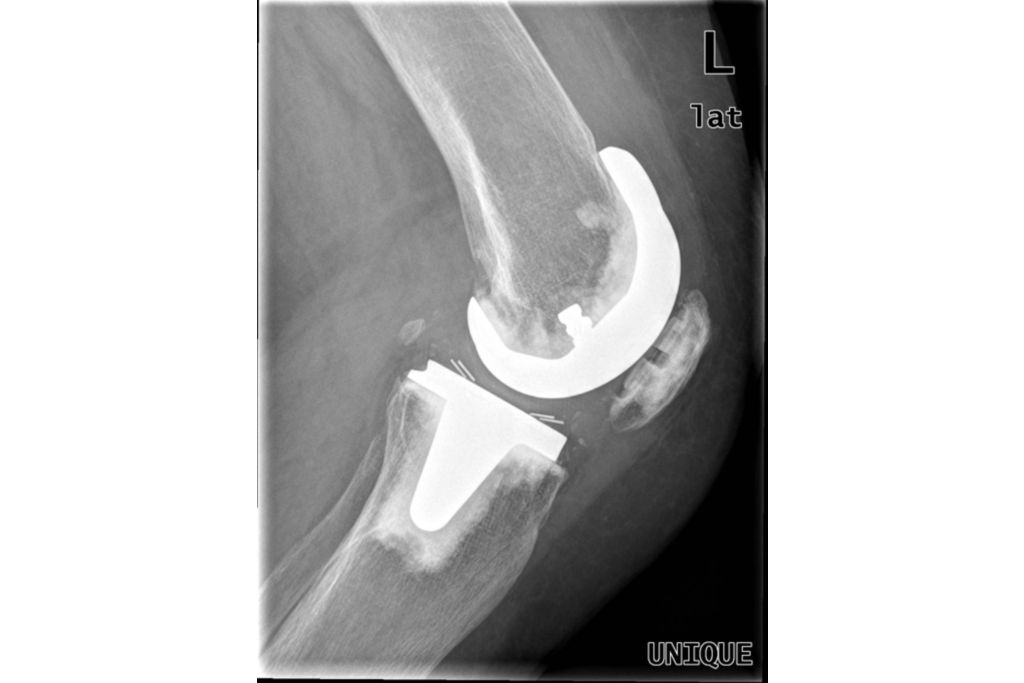

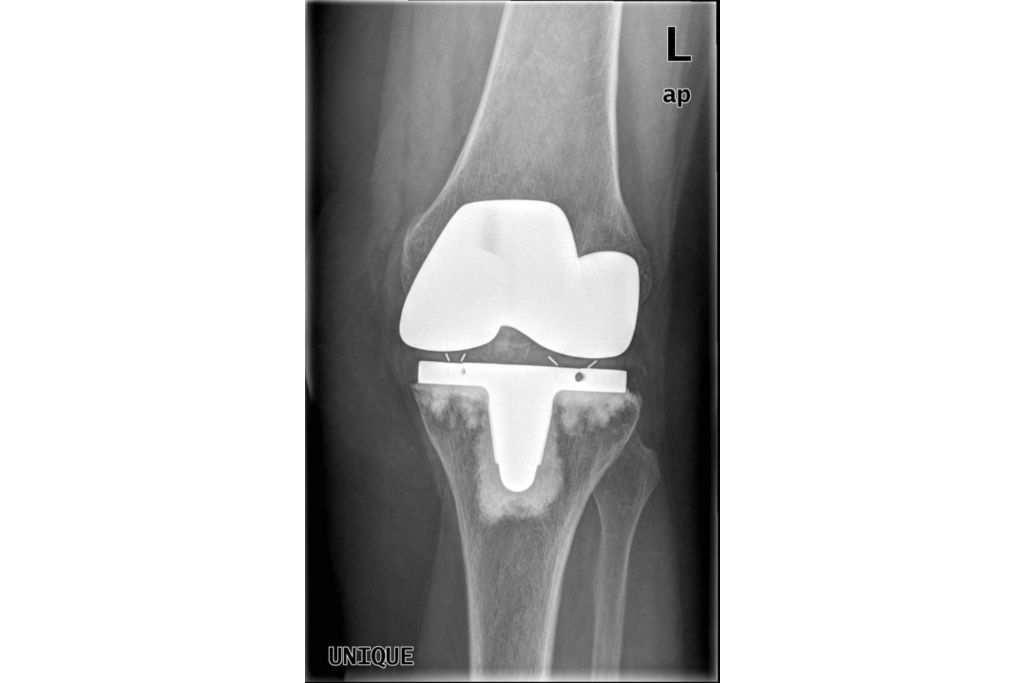

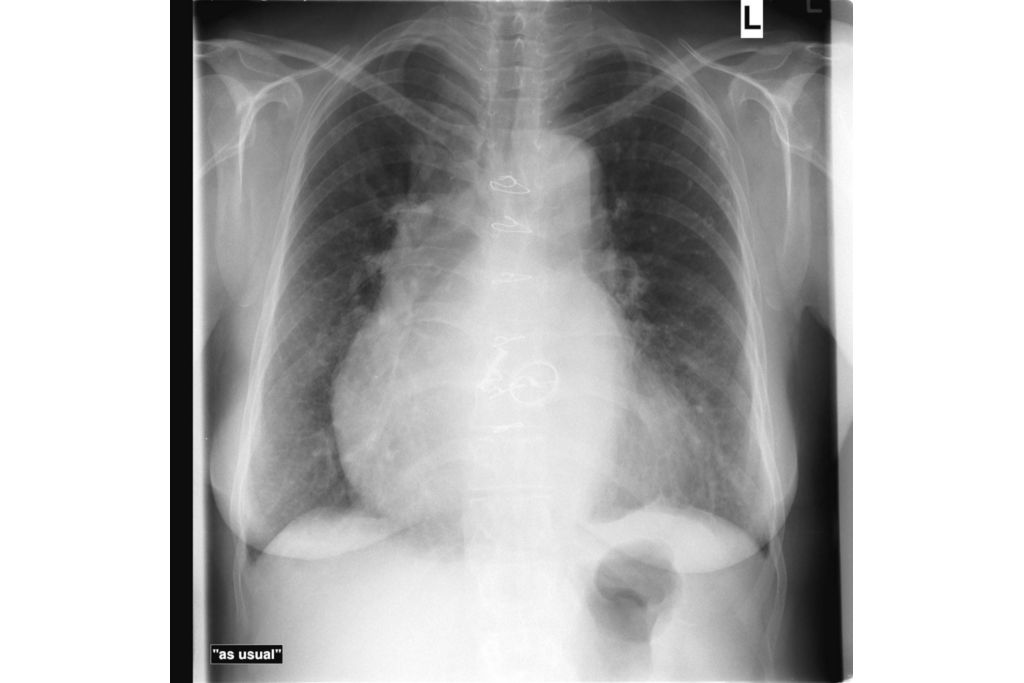

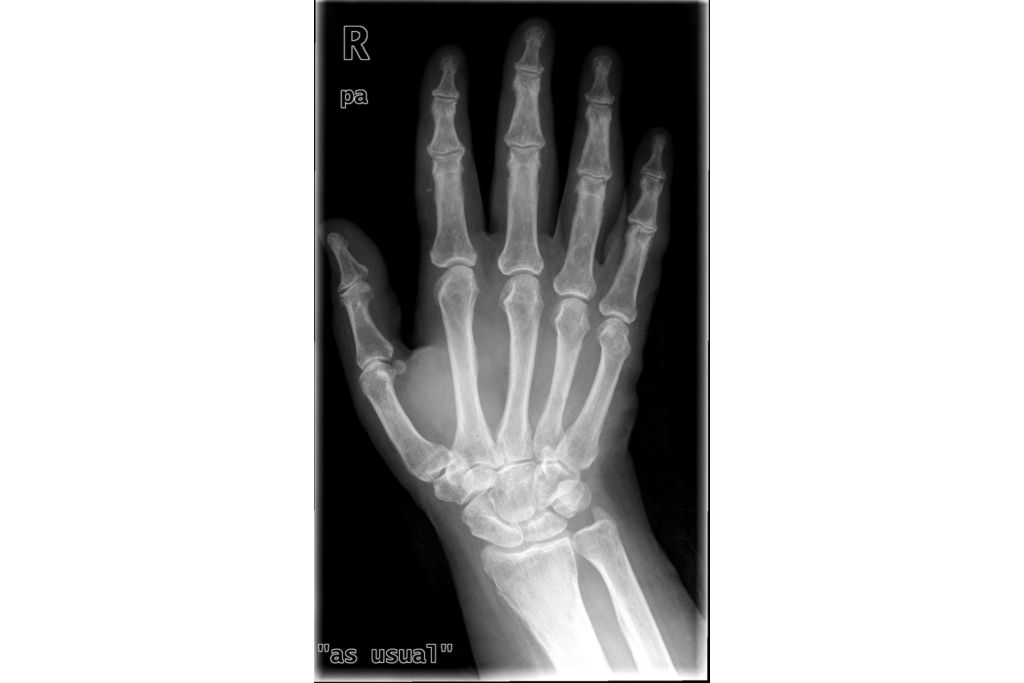

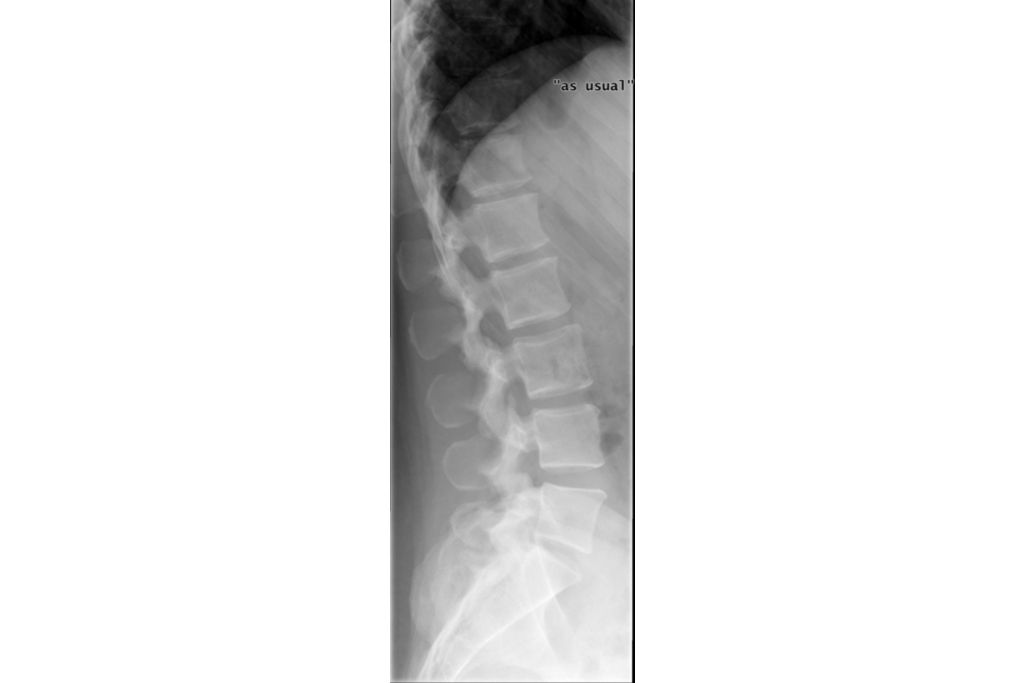

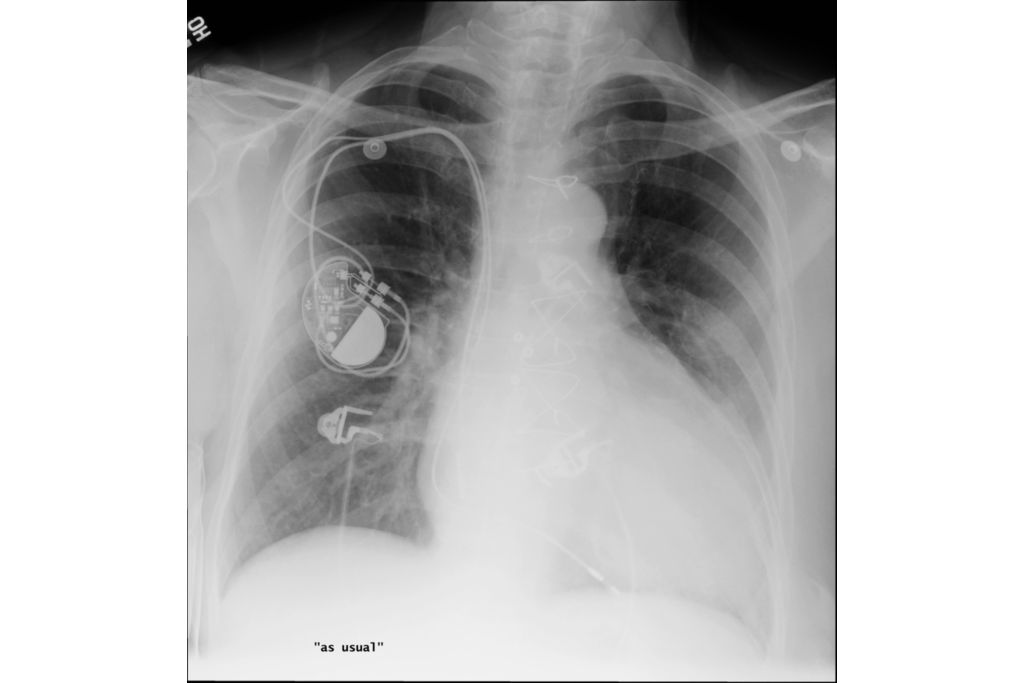

Clinical image gallery
Features

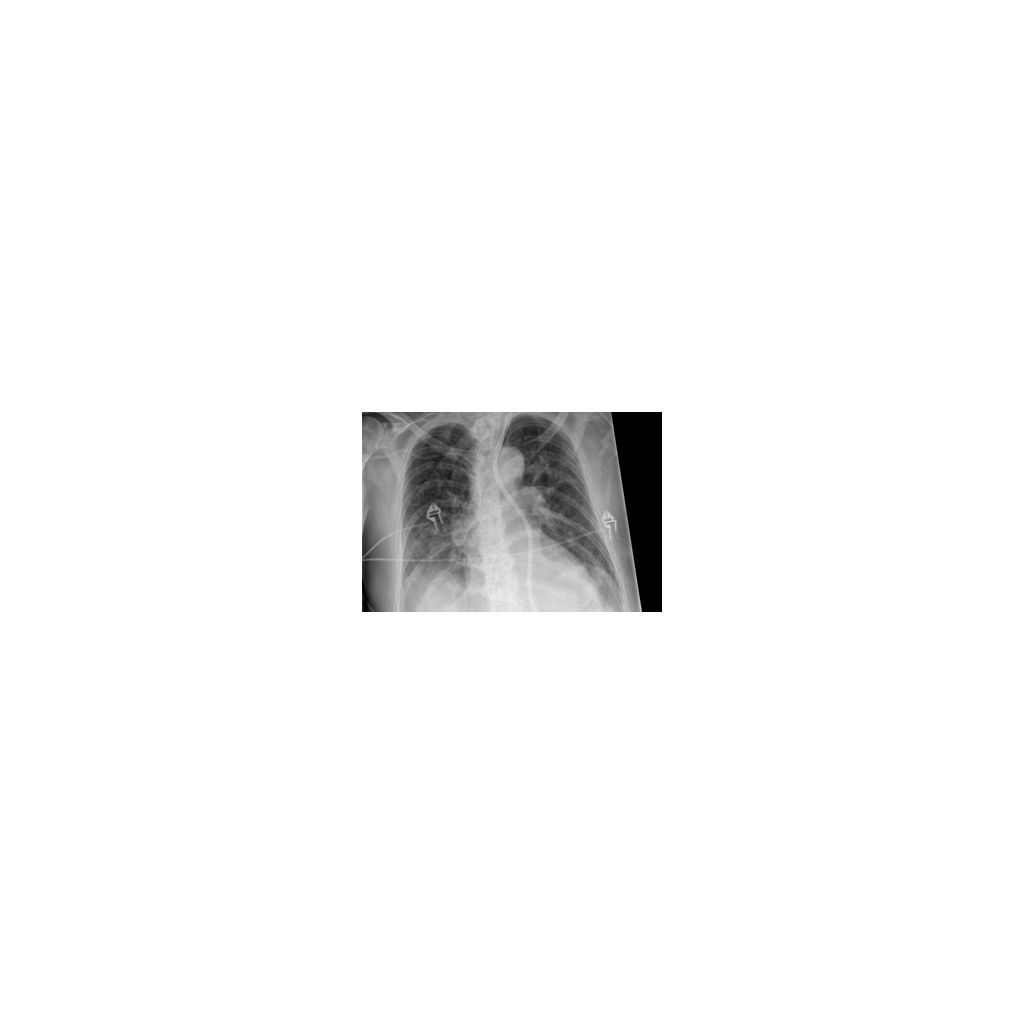

Grid-like contrast
When doing DR exams without a grid, Philips SkyFlow produces images with grid-like contrast. It reduces the effect of scattered radiation for non-grid bedside chest exams.
SkyFlow is the industry’s first scatter correction algorithm technology for portable thorax X-rays – requiring no operator input. It delivers contrast enhancement based on the amount of scatter for the individual patient.

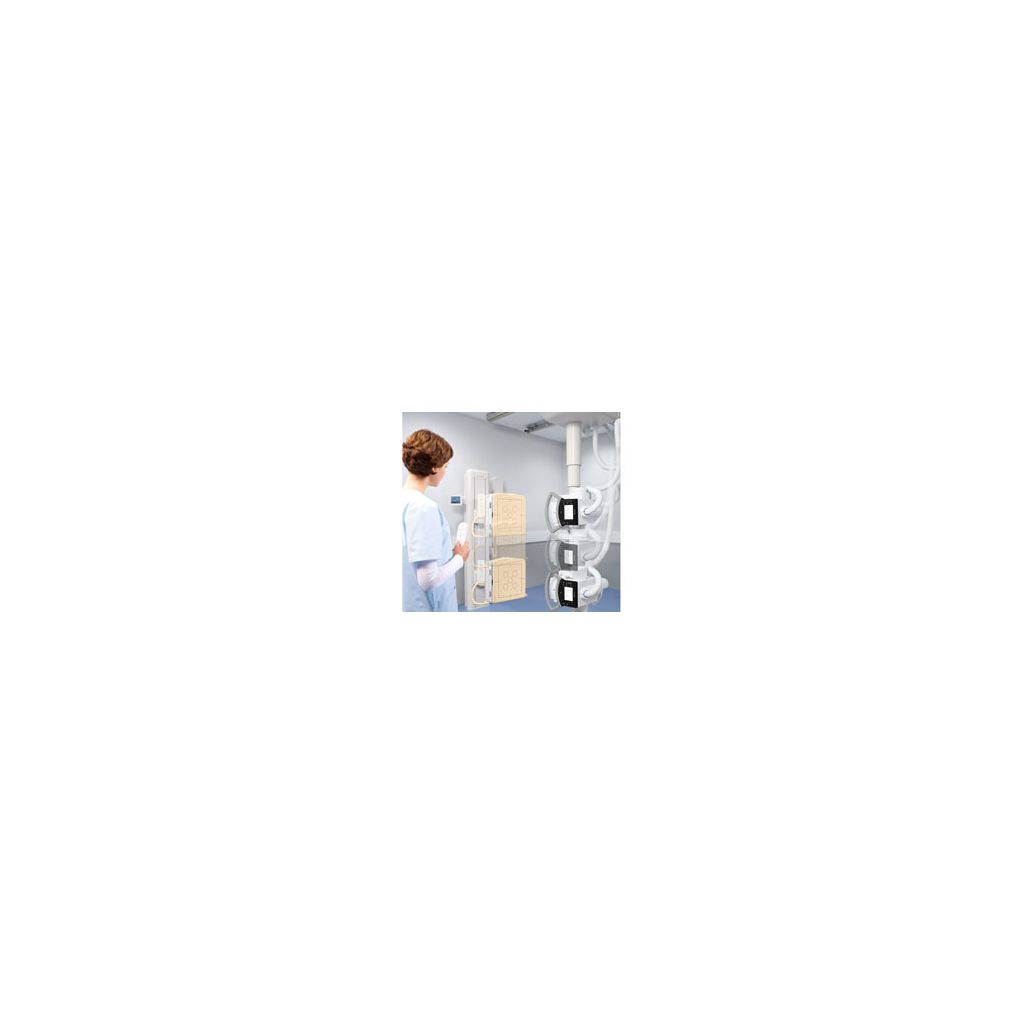

Total DR Room Motorization
With complete room motorization you can automatically position the detector and tube around your patients to free up your DigitalDiagnost DR exam workflow. Immobile patients in particular appreciate the chance to remain in the DR room between projections. Automatic tube tracking and collimation, as well as automatic alignment of tube and detector place patients instead of technology on center stage.

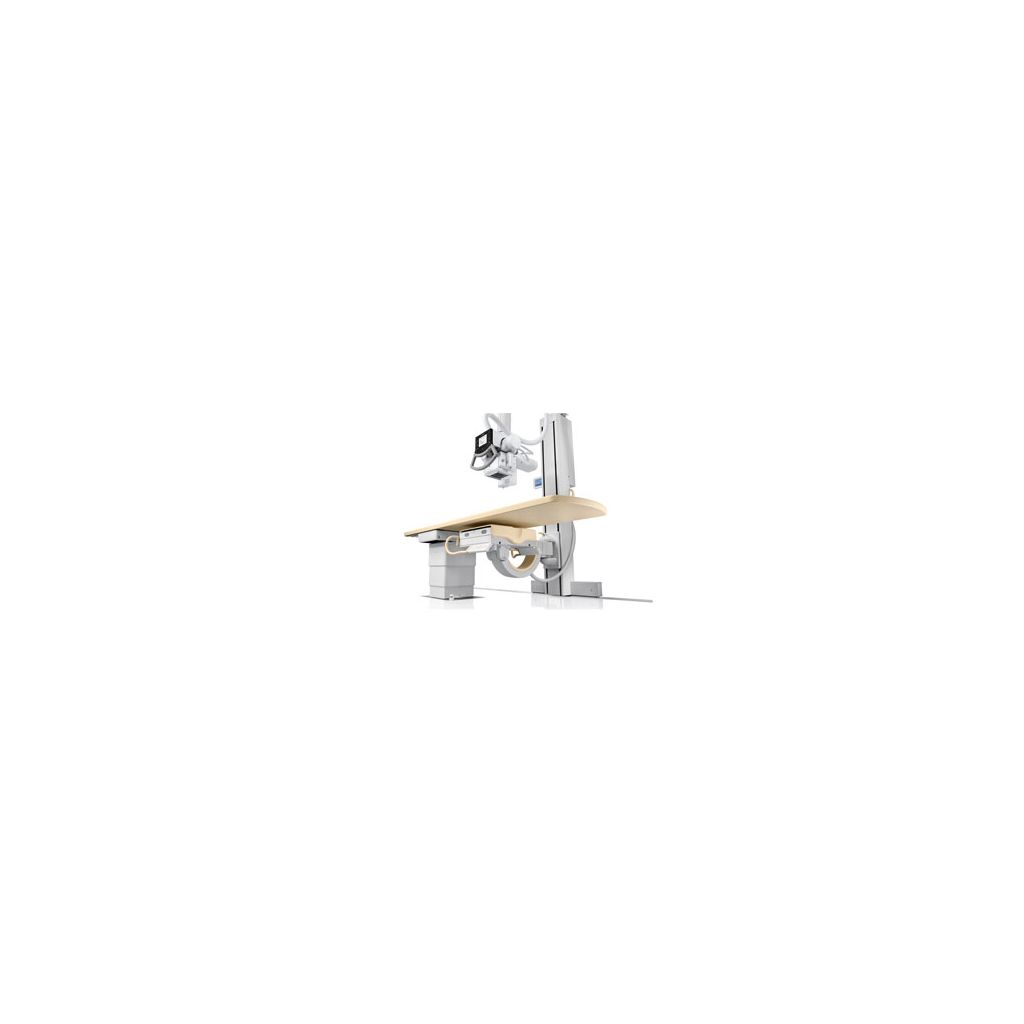

DigitalDiagnost flex room
The single-detector DigitalDiagnost DR flex room with automated ceiling suspension, moveable vertical stand, and single side suspended table with swivel put every part of the patient into the exposure range.
You can reduce patient repositioning and gain application freedom with virtually unlimited pre-defined settings of the tube and the detector mounted on the moveable stand’s flexible arm.
Specifications
- Tube carrier
- Movements
- Longitudinal and transverse
- Ceiling suspension CS
- Motorized ceiling suspended tube carrier with four-part telescopic column
- LCD display
- Wide 16.5cm (6.5”) LCD information display and control buttons for easy and quick handling
- Longitudinal travel
- 3.44 m (11’ 3.4”)/with rail extensions 6.14 m (20’ 1.7”)
- Transverse travel
- Standard version 1.5 m (4’ 11”)/Long version 3.22 m (10’ 6.7”)
- Vertical travel
- 1.66 m (5’ 5.2”)
- Tables
- Tabletop
- Floating sandwich-design tabletop with Getalit overlay
- Floating tabletop allows for fast and easy patient positioning.
- Floating sandwich-design tabletop with carbon fiber overlay
- Height-adjustable table TH
- Height-adjustable patient table with a large range of movements. Convenient handling supports quick patient positioning. Easy patient transfer in recumbent or seated positions.
- Detector
- With fixed detector or a SkyPlate in the table tray
- Grid
- Oscillating or fixed grid
- Dimensions
- (l x w): 240 x 75 cm (7’10.5” x 29.5”) and optional 240 x 85 cm (7’10.5” x 33.5”)
- (l x w): 260 x 75 cm (8’ 6.4” x 29.5”)
- 220 x 67 cm (7’2.6” x 26.4”)
- X-ray transparent area
- 173 x 67 cm (5’8.1” x 26.4”)
- Single side suspended table TH-S
- Single side-suspended, height-adjustable table. Ideally suited for use with moveable vertical stand VM – the multi-purpose stand with swiveling tube arm.
- Height of tabletop above floor
- 87 cm (34.3”)
- Max. patient weight
- 225 kg (496 lbs)
- 225 kg (496 lbs)
- Foot pedal
- Foot pedal operation allows close proximity to the patient
- Table base
- Has an optional swivel function to enhance patient and system accessibility
- Length of X-ray transparent area
- 2.08 m (6’ 9.9”)
- Height adjustment
- 50.3 to 90.3 cm above floor (19.8” to 35.6”), motorized adjustment
- Height-adjustable trolley TA-M
- Easy and safe handling with two foot pedals on each side. All TH-S table accessories can be used with the TA-M trolley.
- Weight of trolley
- 130 kg (286 lbs)
- Vertical stands
- Vertical stand VS
- Motorized vertical stand with fixed or SkyPlate. Can be adjusted with a left and right hand control unit and/or by wireless remote control.
- Angle of detector tilt
- Horizontal axis: -20° to +90°/vertical axis+45° to -23°, motorized tilting
- Tiltable detector
- Optional, tilt angle: –20° to +90°, motorized tilting
- Detector is tiltable and moveable, e.g. beneath the single side-suspended table
- Grid
- Oscillating or fixed grid, can store up to two grids within the detector unit
- Exposure control
- Five automatic exposure control chambers
- Five automatic exposure control chambers
- Controls
- Two control panels and remote control
- Two control panels and remote control
- LCD display
- LCD patient information display (optional)
- LCD patient information display (optional)
- Dimensions
- Height: 2.08 m (6’ 9.9“)
- Height: 2.48 m (8’1.6”)
- Horizontal movement range
- Motorized 3.48 m (11’4.8”)/non-motorized 3.71 m (12’2.1”)
- Vertical movement of detector unit
- 30 cm to 1.80 m (11.8” to 5.1”) (central beam)
- Vertical movement range
- 35 cm to 1.85 m (13.8” to 6’ 1”) (central beam)
- Moveable vertical stand VM
- Moveable vertical stand with multi-purpose swiveling arm for full application flexibility with just one digital - 43x43 cm (17x17”) detector. Can be adjusted with a left and right hand control unit and by wireless remote control.
- Swiveling range of multi-purpose arm
- 0° to 90° (right or left operator side)
- Oscillating grid
- Can store up to two grids within the detector unit
- Detectors
- Resolution
- up to 3.5 lp/mm, 143 μm pixel size
- up to 3.4 lp/mm, 148 μm pixel size
- Fixed detector
- Integrated into the TH table and vertical stands.
- Size
- 43 cm x 43 cm. Large size provides high projection flexibility for virtually all patient sizes.
- 35 cm x 43 cm /14"x17" can carry out difficult projections

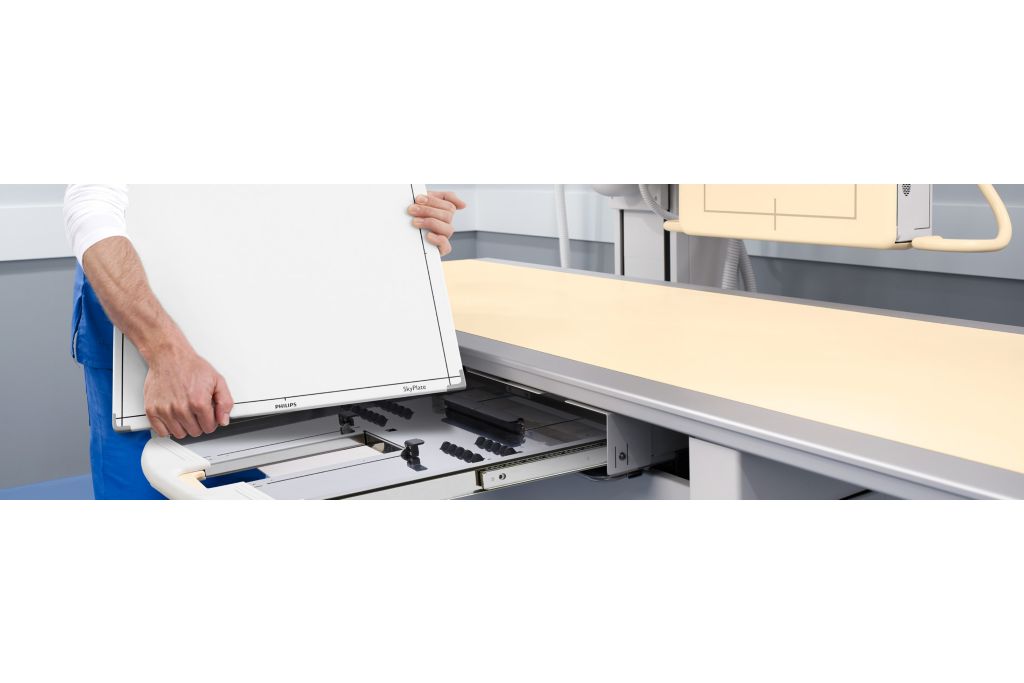

- SkyPlate
- Convenient handling with cable-free design.
- Charging
- Detector only charges when being placed in battery charger
- Robust design
- Guarantees a drop height of 70 cm (28")
- Imaging solutions
- SkyFlow
- Scatter Correction algorithm for thorax x-rays. Automatic image contrast enhancement. For all patient types - even bariatric. Automatic operation, shorter exam times.
- Philips Computed Radiography (PCR Eleva)
- We offer several CR solutions for different departmental set-ups with single or multi-slot high-resolution readers.
- Eleva workspot
- Workflow software offers central operating workspot for the entire X-ray examination. 19" LCD color touch screen monitor with 1280 x 1024 resolution. Intuitive Eleva user interface allows touch screen use - even with gloves. UNIQUE image processing software for fast and excellent results.
- Software
- SkyPlate sharing for systems without SkyPlate.
- SkyFlow
- Dose Reporting in DICOM Structured Report format
- DICOM package plus
- Automatic image stitching
- Clinical QC
- Tubes and generators
- X-ray tubes
- Dual-focus rotating anode tube: focal spots: 0.6mm/1.2mm. Excellent lifetime with tube overload protection. Compatible with VarioFocus (optional).
- Generators
- Wide range of applications. Available configurations: 65 kW, 80 kW. Features include Anatomically Programmed Radiography (APR), tube overload protection, and automatic exposure control.
