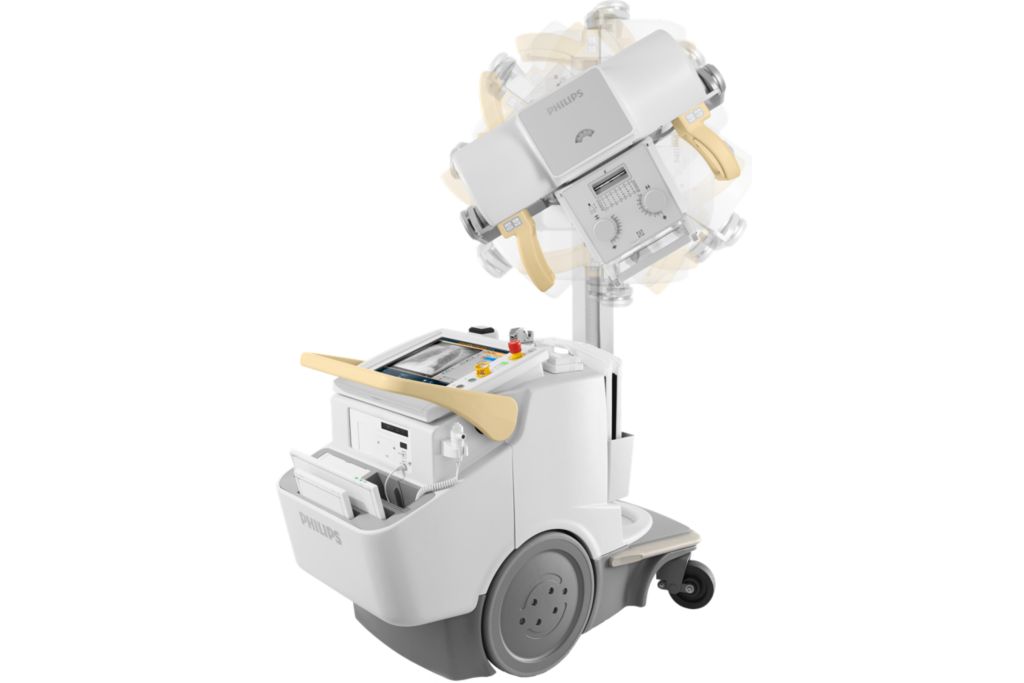

MobileDiagnost wDR
Mobile digital radiography system
MobileDiagnost wDR
Mobile digital radiography system
With MobileDiagnost wDR, the story of DR access and flexibility from Philips continues. MobileDiagnost offers premium solutions for quality images and excellent X-ray dose management. Delivering DR where you need it, when you need it.
Clinical image gallery
Features
Fast, high-quality images enhance patient experience
Five minutes can make a big difference to patient management, especially in an emergency situation where the patient can become unstable quickly. The efficient MobileDiagnost wDR delivers excellent image quality without losing precious time.

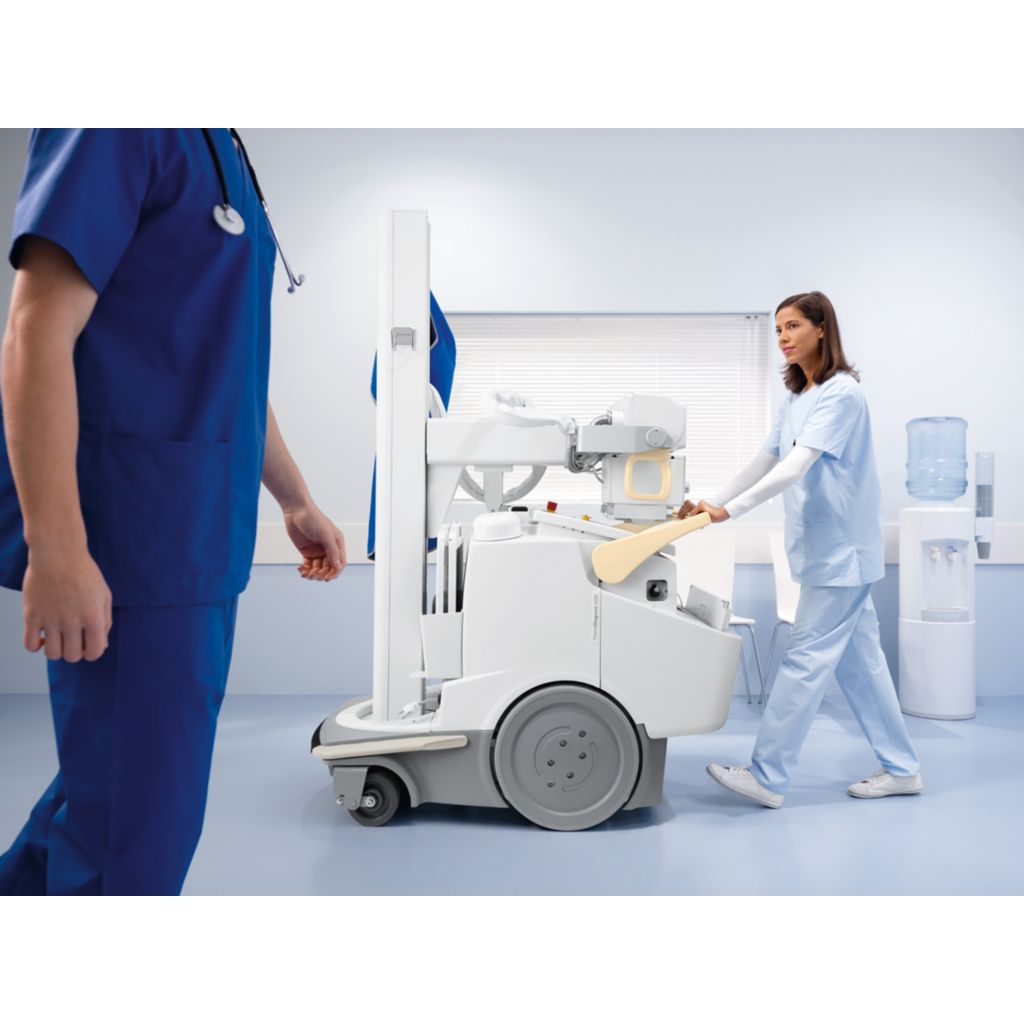

Mobile X-ray system can access all hospital areas
Deliver premium digital radiography (DR) to immobile patients in all areas of the hospital. With MobileDiagnost wDR, you enjoy the excellent image quality and great workflow efficiency of a Philips premium digital radiography room in a flexible mobile X-ray system. MobileDiagnost wDR comes with outstanding maneuverability, smart system design, and motorized control.

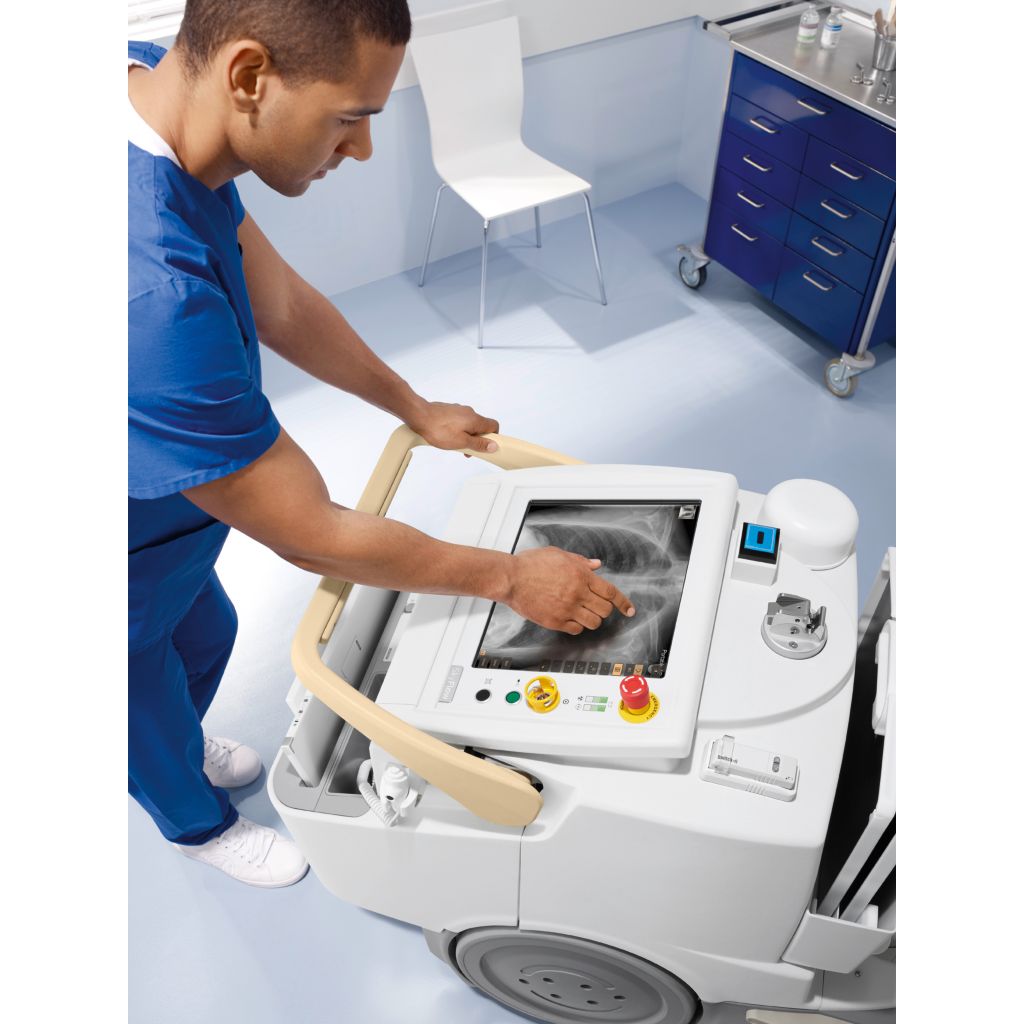

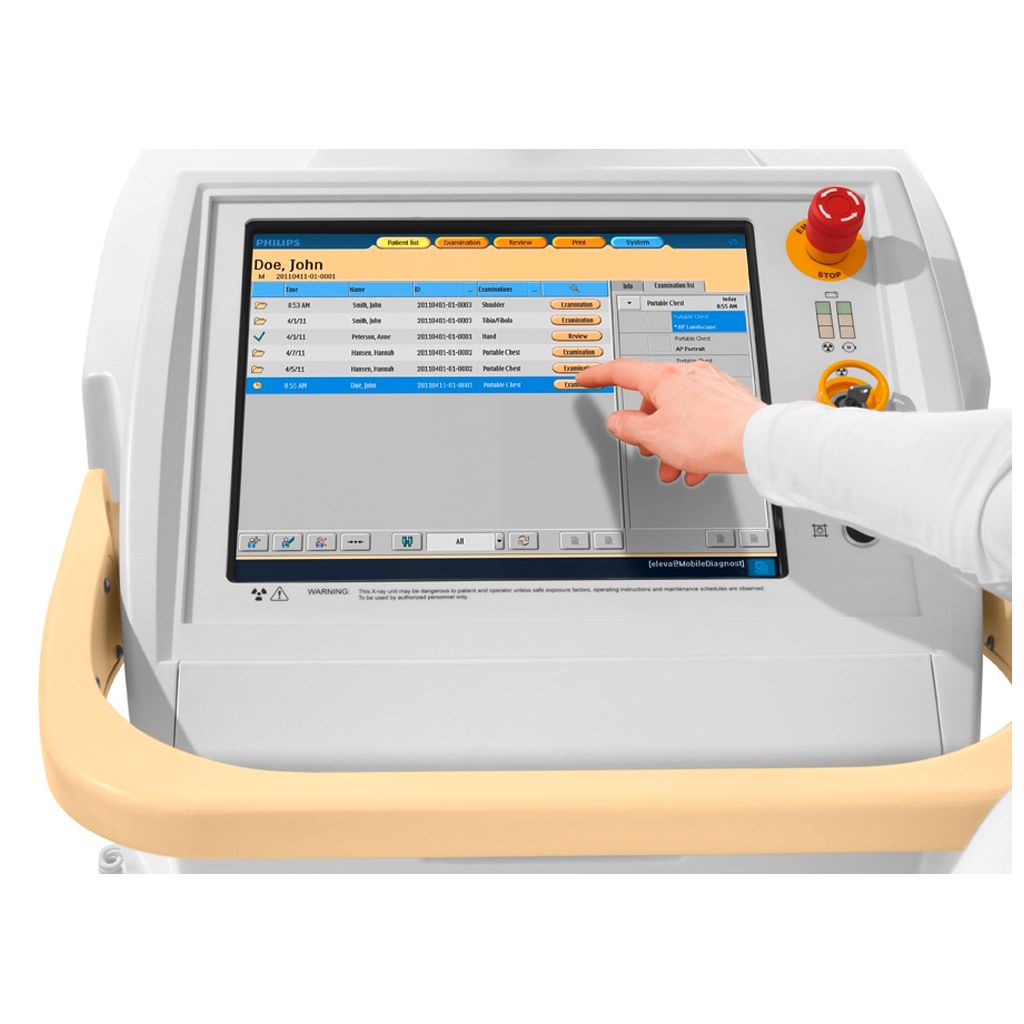

Eleva user interface to simplify workflow
The 17" monitor, touchscreen design, and intuitive layout of the Eleva user interface is ideally suited to busy facilities with a high workload. The pre-settings and customized user profiles result in more automated workflow, with images available in just five seconds. Clinical image thumbnails and intuitive image manipulation allow exams to be quickly finalized.
Specifications
- Mobile unit
- Dimensions
- 1380 mm L x 670mm W x 1980mm H (54.3" L x 26.4" W x 78" H)
- Wheel base
- 611mm (24.1")
- Motorization
- 0 - 5 km/h (0 - 3.1 mph)
- Focal point distance from floor
- max 2020 mm (79.5"); min 550 mm (21.7")
- Tube column rotation
- approx. 315
- Focal point distance to column
- max: 1250mm (49.2"); min: 700mm (27.5")
- MobileDiagnost wDR Performance
- mA range
- 10 - 320
- Power
- 20
- mAs range
- 0.1 - 500 mAs
- Exposure times
- 0.001 - 10
- Generator
- Type
- High frequency generator
- MobileDiagnost wDR High Performance
- Power
- 40
- mA range
- 10 - 500
- mAs range
- 0.1 - 500 mAs
- Exposure times
- 0.001 - 10
- Tube and collimator
- Tube type
- High speed tube with dual focal spots
- MobileDiagnost wDR Performance focal points
- 0.3 / 1.0
- MobileDiagnost wDR High Performance focal points
- 0.7 / 1.3
- Collimator type
- Collimator with SID laser indication and built-in filter disk
- SkyPlate wireless portable detectors
- Type
- Digital Cesium Iodide (CsI) flat detector
- Detector size
- 35 cm x 43 cm (14"x 17")
- Image matrix size
- 2330 x 2846 pixel
- Image resolution
- up to 3.38 Lp/mm
- Weight typical
- 2.8kg (6.2 Ibs)
- Click-on grids
- r= 8:1; fo = 1300 mm (51.2") in portrait or landscape orientation
- Pixel size
- 148
- Matrix depth
- 16 bit/pixel
- Eleva user interface
- Monitor
- 17" touch-screen monitor
- Typical time to display preview image
- 5
- Image storage
- up to 4,000 images
- Generator control
- integrated into graphical user interface; more than 600 pre-programmable settings (APRs)
