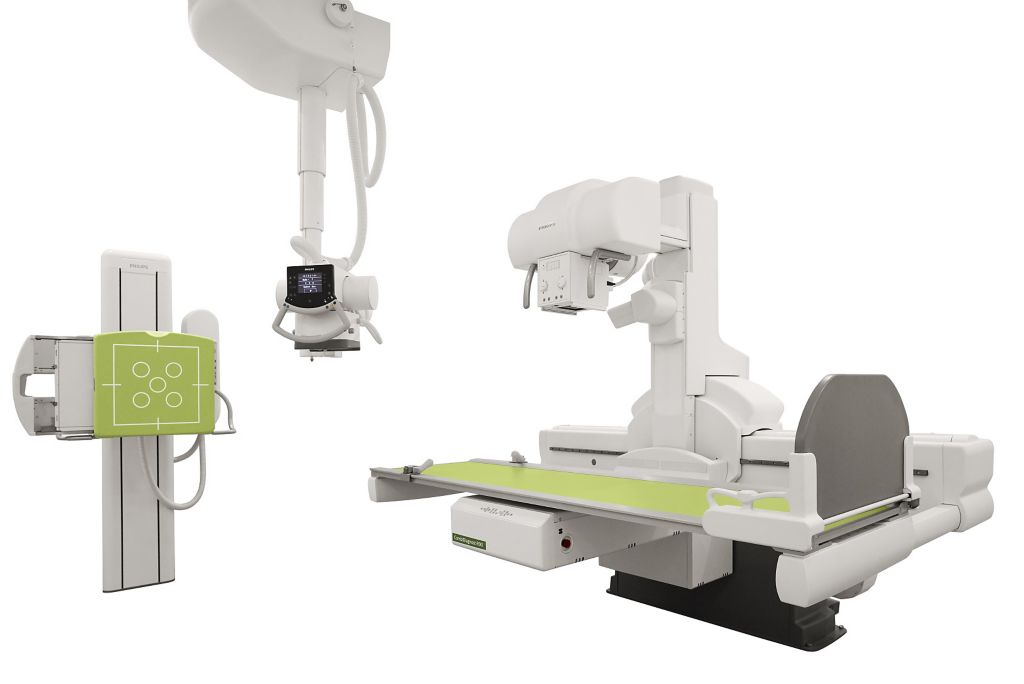

CombiDiagnost R90

Cross functional DRF system

Find similar products

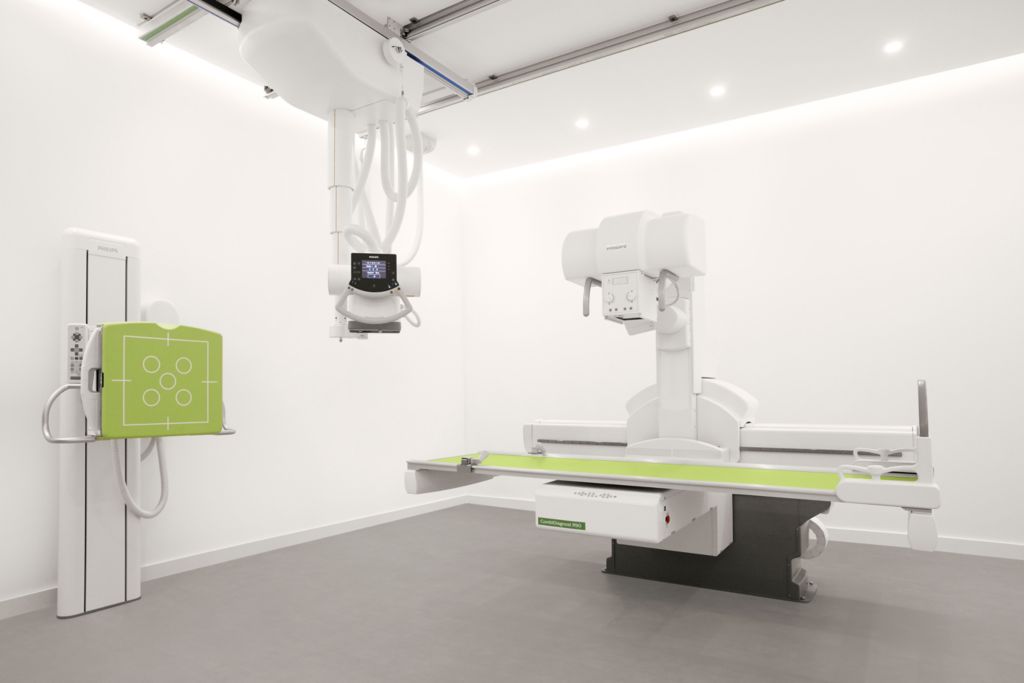

This remote controlled fluoroscopy system in combination with high-end digital radiography is designed for consistent, superb image quality and high room utilization, in a cost effective manner.

Features
Supports diagnostic confidence
Supports diagnostic confidence

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.

Supports diagnostic confidence

Supports diagnostic confidence
Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Click here for more information
Supports diagnostic confidence
Supports diagnostic confidence

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Detectors that deliver
Detectors that deliver

Detectors that deliver

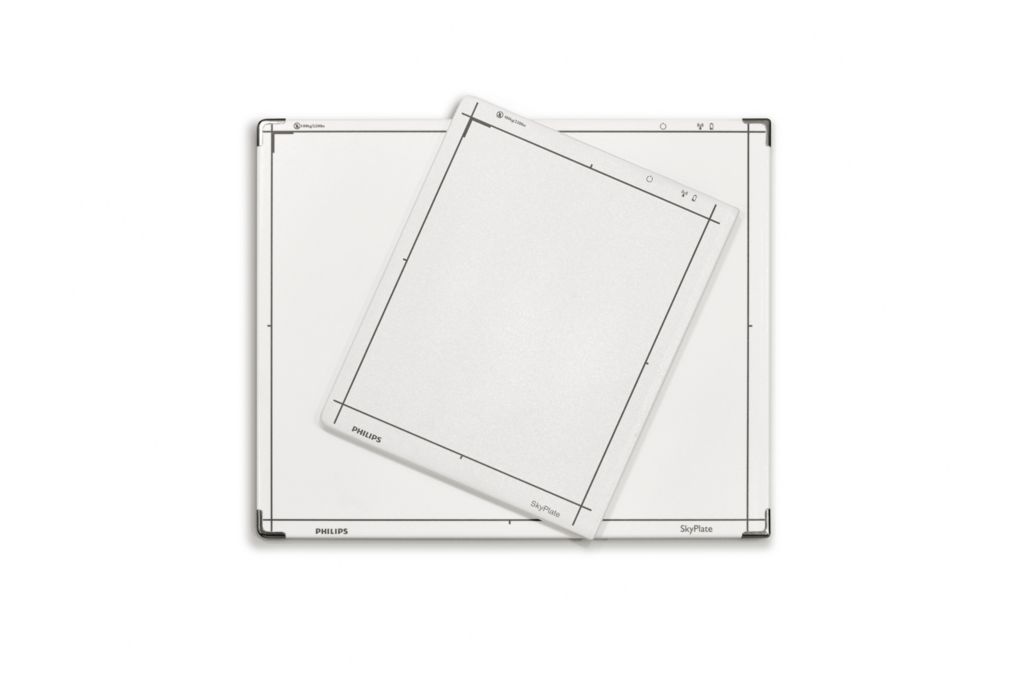

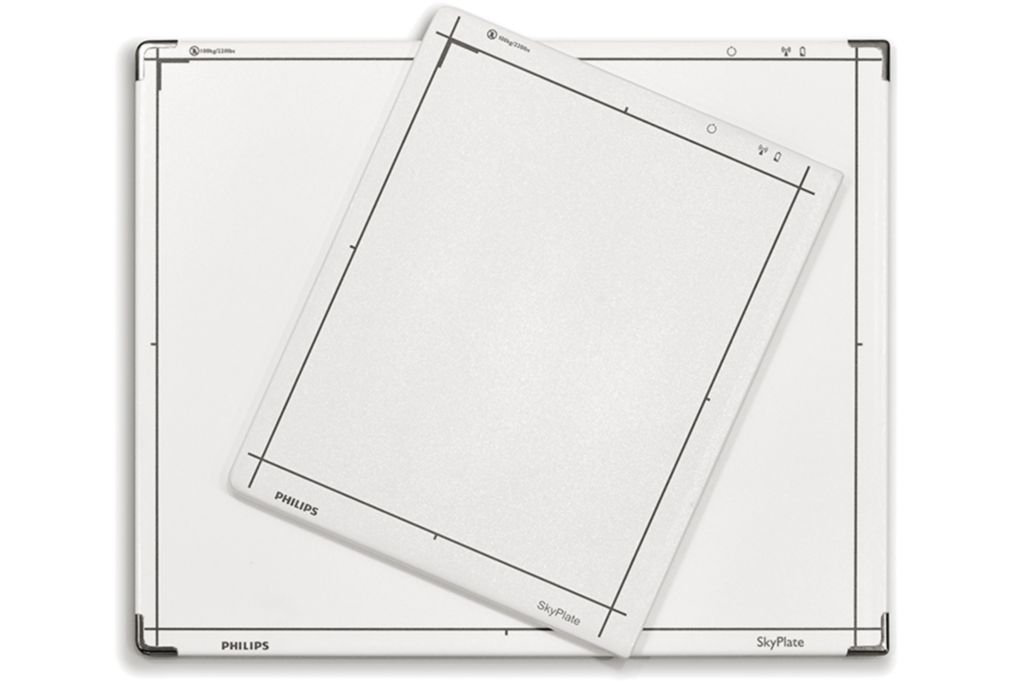

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.

Detectors that deliver

Detectors that deliver
The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.

Detectors that deliver

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Click here for more information
Detectors that deliver
Detectors that deliver

Detectors that deliver

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Hidden details revealed
Hidden details revealed

Hidden details revealed

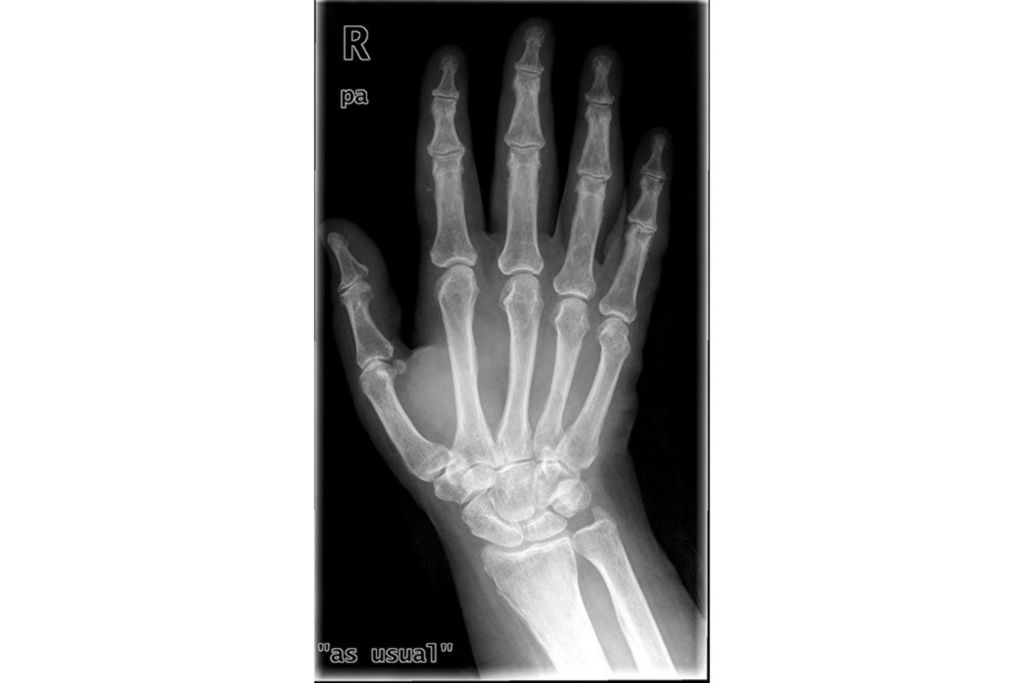

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

Hidden details revealed

Hidden details revealed
Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Click here for more information
Hidden details revealed
Hidden details revealed

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Superb image quality at low dose
Superb image quality at low dose

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

Superb image quality at low dose

Superb image quality at low dose
If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.
Click here for more information
Superb image quality at low dose
Superb image quality at low dose

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

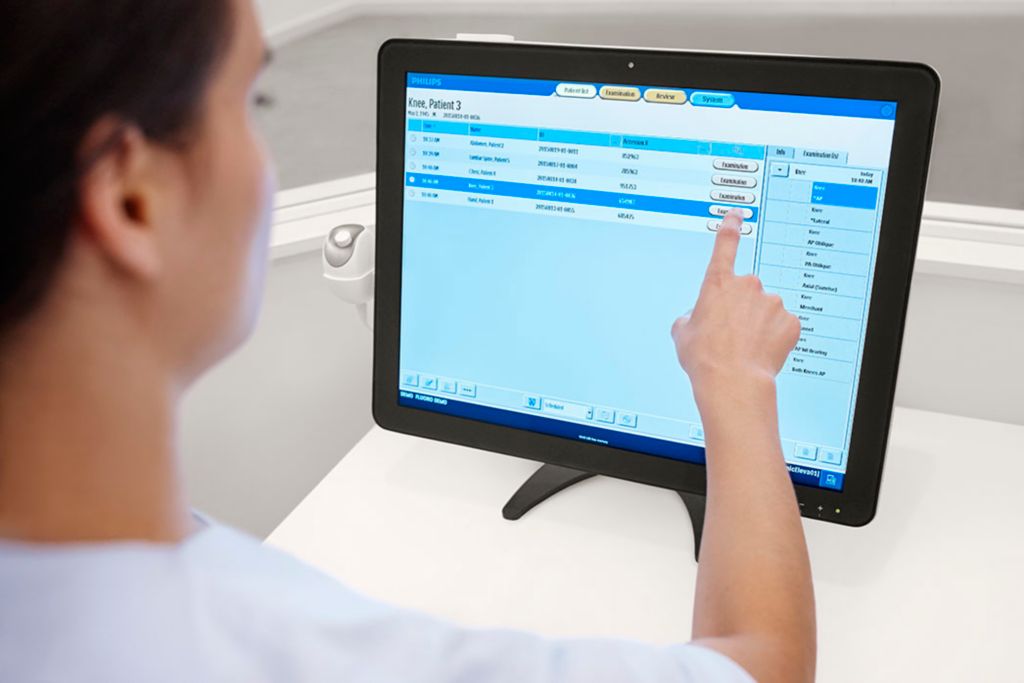

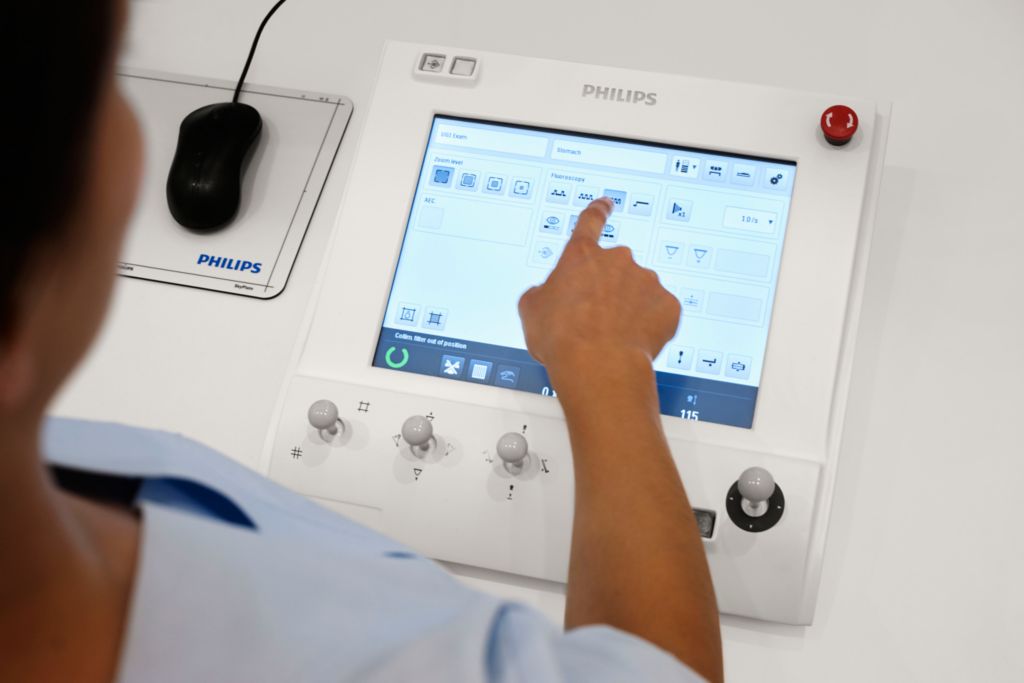

Quick, intuitive workflow
Quick, intuitive workflow

Quick, intuitive workflow

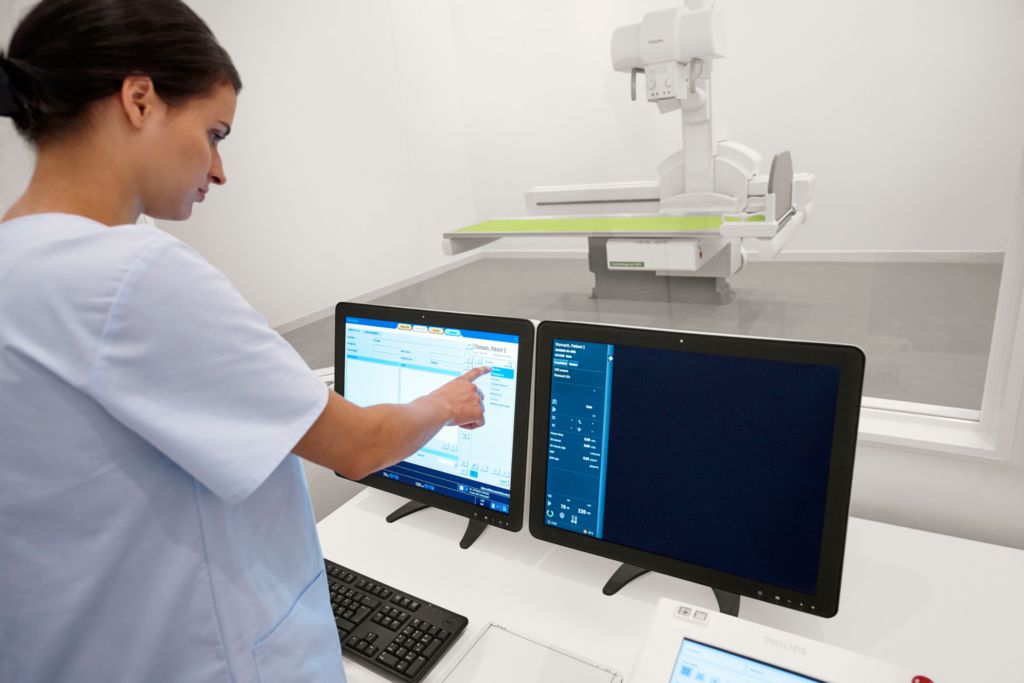

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

Quick, intuitive workflow

Quick, intuitive workflow
The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

Quick, intuitive workflow

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.
Click here for more information
Quick, intuitive workflow
Quick, intuitive workflow

Quick, intuitive workflow

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

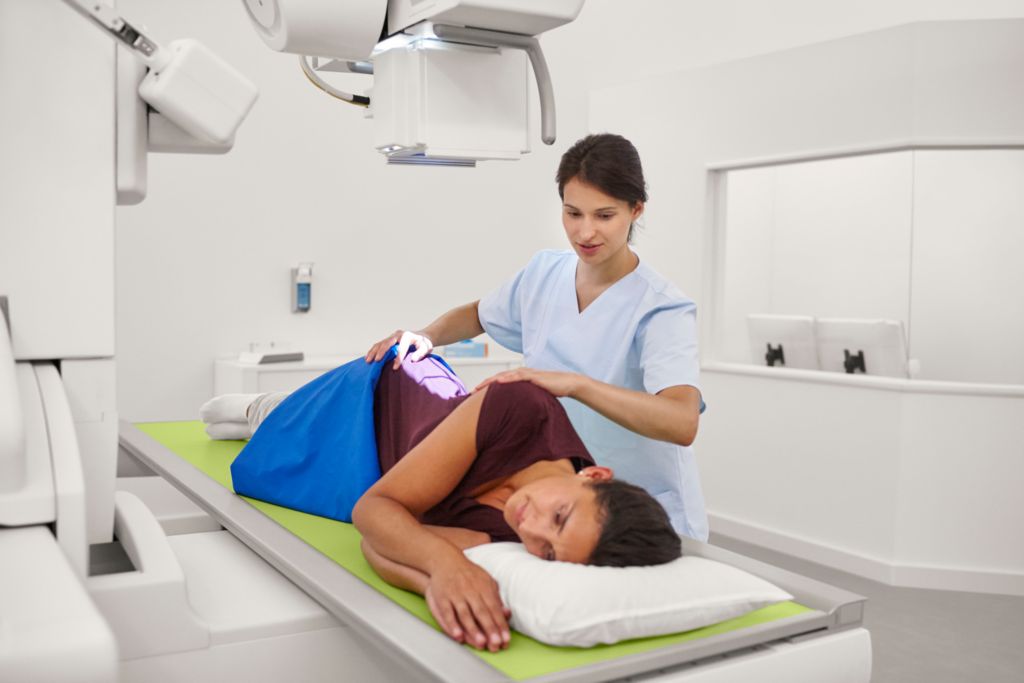

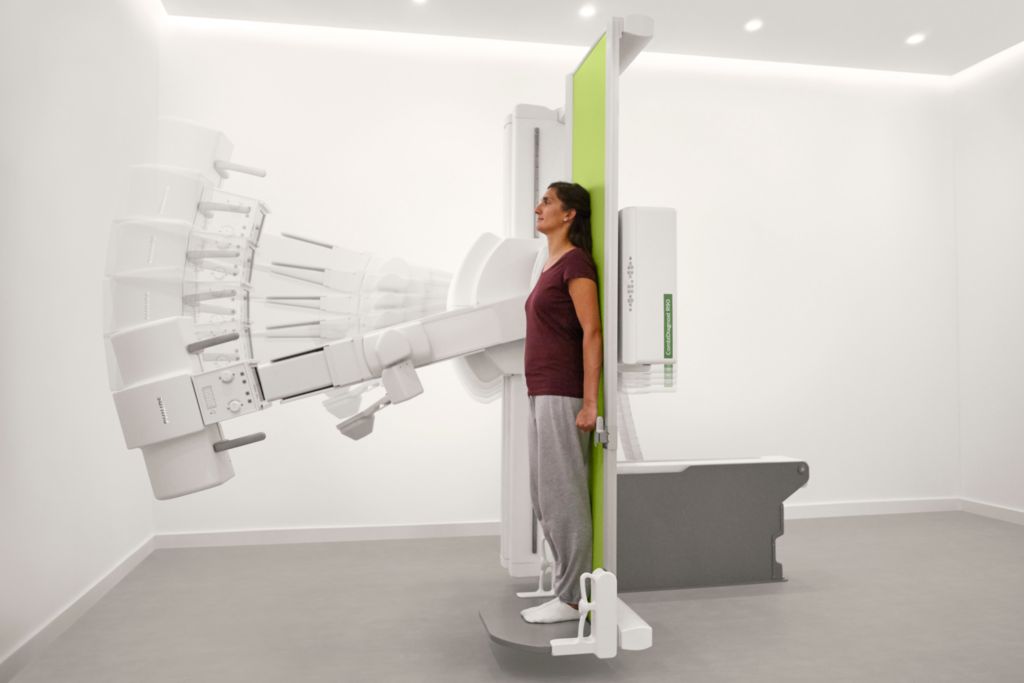

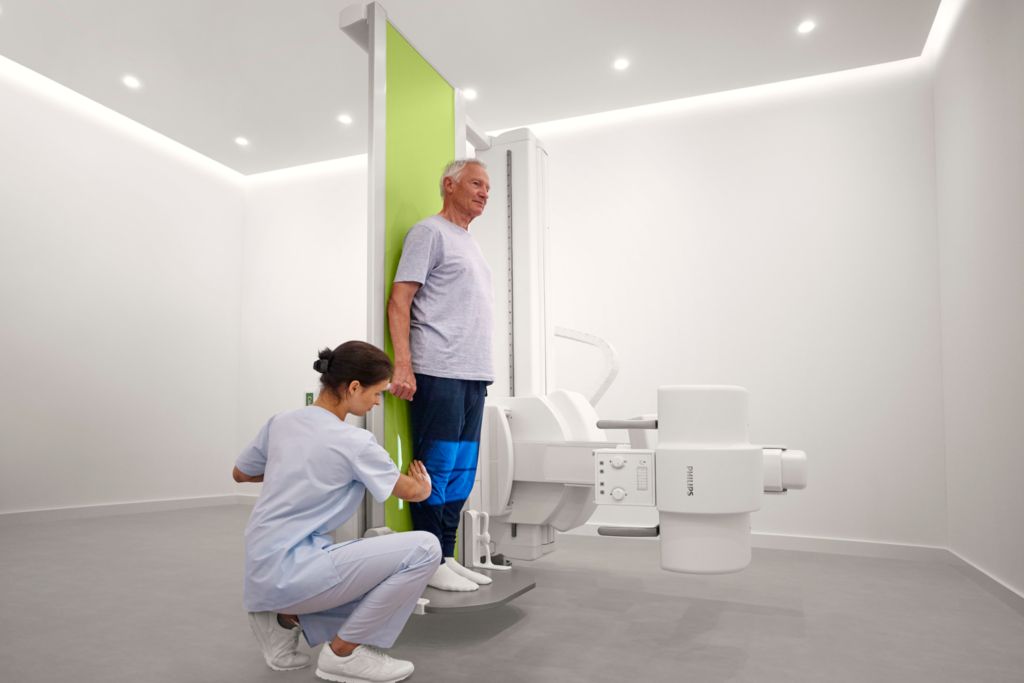

Ease of operation
Ease of operation

Ease of operation

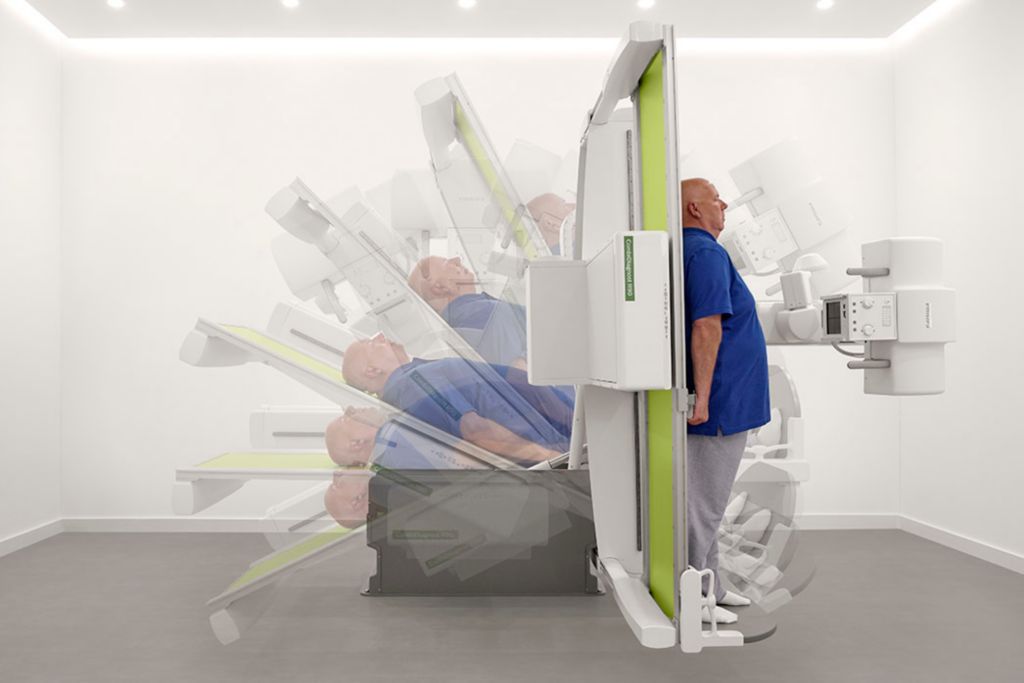

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Ease of operation

Ease of operation
Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Ease of operation

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.
Click here for more information
Ease of operation
Ease of operation

Ease of operation

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.
  • Supports diagnostic confidence
  • Detectors that deliver
  • Hidden details revealed
  • Superb image quality at low dose
See all features
Supports diagnostic confidence
Supports diagnostic confidence

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.

Supports diagnostic confidence

Supports diagnostic confidence
Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Click here for more information
Supports diagnostic confidence
Supports diagnostic confidence

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Detectors that deliver
Detectors that deliver

Detectors that deliver

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.

Detectors that deliver

Detectors that deliver
The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.

Detectors that deliver

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Click here for more information
Detectors that deliver
Detectors that deliver

Detectors that deliver

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Hidden details revealed
Hidden details revealed

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

Hidden details revealed

Hidden details revealed
Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Click here for more information
Hidden details revealed
Hidden details revealed

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Superb image quality at low dose
Superb image quality at low dose

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

Superb image quality at low dose

Superb image quality at low dose
If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.
Click here for more information
Superb image quality at low dose
Superb image quality at low dose

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.
Quick, intuitive workflow
Quick, intuitive workflow

Quick, intuitive workflow

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

Quick, intuitive workflow

Quick, intuitive workflow
The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

Quick, intuitive workflow

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.
Click here for more information
Quick, intuitive workflow
Quick, intuitive workflow

Quick, intuitive workflow

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.
Ease of operation
Ease of operation

Ease of operation

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Ease of operation

Ease of operation
Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Ease of operation

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.
Click here for more information
Ease of operation
Ease of operation

Ease of operation

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Specifications

Tube: SRO 33100 ROT380 (for CS)
Tube: SRO 33100 ROT380 (for CS)
Anode heat storage capacity
  • 300 kHU (200kJ)
focal spot
  • 0.6 /1.2
Maximum voltage
  • 150 kV
Ceiling Suspension
Ceiling Suspension
Collimator
  • Motorized, automatic
Ceiling height at SID 110 cm (44")
  • 2.83 m to 3.21 m (8'8.3" - 10'5.9")
Type
  • Four-part telescopic column
Geometry
Geometry
Source to Image Distance (SID)
  • 113 cm – 183 cm (44’’ to 72’’)
Wireless detector: SkyPlate Large
Wireless detector: SkyPlate Large
Image matrix size
  • 2330 x 2846 pixel
Type
  • Digital Csl (Cesium Iodide) flat detector
Detector size
  • 35 cm x 43 cm (14" x 17")
Active area
  • 34.48 cm x 42.12 cm (13.6" x 16.6")
Wireless detector: SkyPlate Small
Wireless detector: SkyPlate Small
Type
  • Digital Csl (Cesium Iodide) flat detector
Detector size
  • 24 cm x 30 cm (app. 10" x 12")
Image matrix size
  • 1500 x 1920 pixel
Active area
  • 22.2 cm x 28.4 cm (8.7" x 11.2")
Tube: SRO 33100 ROT380
Tube: SRO 33100 ROT380
Anode heat storage capacity
  • 300 kHU (200kJ)
Maximum voltage
  • 150 kV
focal spot
  • 0.6 /1.6
Tube: SRM 0608 ROT GS 505
Tube: SRM 0608 ROT GS 505
Anode heat storage capacity
  • 800 kHU (593kJ)
Maximum voltage
  • 125 kV (110 kV in GCF)
focal spot
  • 0.6 /0.8
Dynamic Flat Detector
Dynamic Flat Detector
Acquisition mode continious fluoroscopy
  • Up to 30 frames per second
Pixel size
  • 148 µm
Image matrix size
  • 2,874 pixel x 2,840 pixel
Detector Size
  • 43 cm x 43 cm (17"x17")
Acquisition mode pulsed fluoroscopy
  • Up to 20 per second
Generator
Generator
Power
  • 65 kW, 80kW optional
Tube voltage exposure
  • 40 - 150 kV
Fluoroscopy techniques
  • Pulsed fluoroscopy (PF), in-pulse controlled
  • Grid-controlled fluoroscopy (GCF), in-pulse controlled
Exposure techniques
  • Manual: kV-mAs or kV-mA-s
  • Automatic Exposure Control (AEC) - Intelligent Exporuse (IQX), In-Pulse controlled
  • Automatic kV reduction techniques
Tube voltage flouroscopy
  • 40 - 125 kV
Geometry
Geometry
Maximum patient weight
  • 284 kg (626 lbs) without limitations
Motorized compressor
  • 3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
Tube column movement range
  • 160 cm (63")
Table tilt angle
  • -90°/+90°
Table height
  • 62 cm - 142 cm (24.4"-59.9")

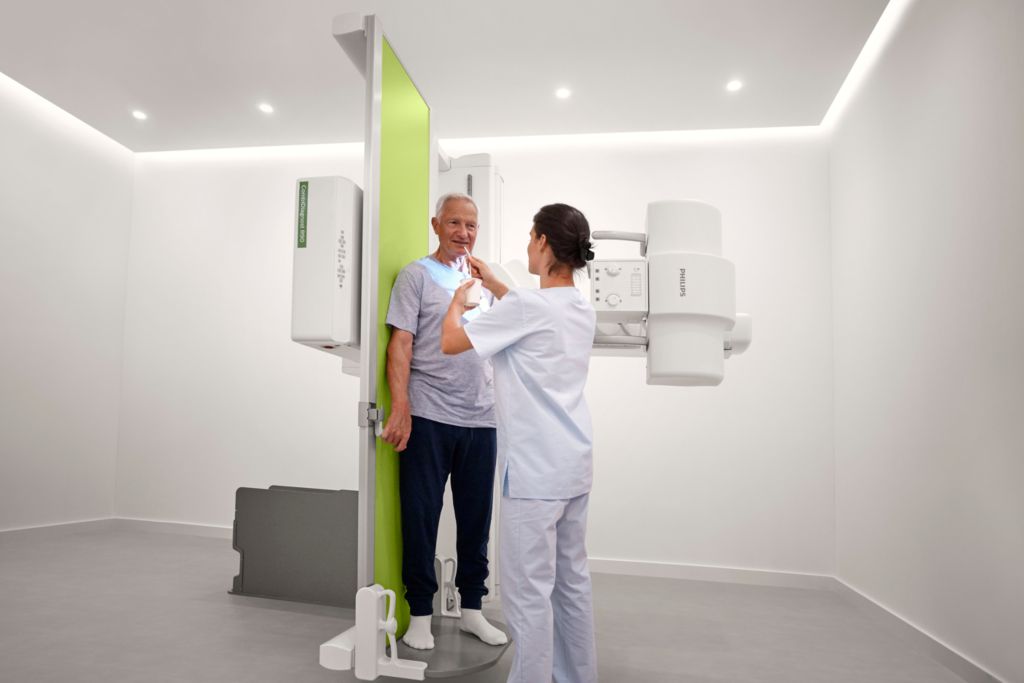

Digital vertical stand
Digital vertical stand
Vertical travel
  • 30 cm - 180 cm (11.8" - 5'11")
Detector Size
  • SkyPlate detector
Motorized tilting
  • Optional, -20° to +90°
Tube: SRO 33100 ROT380 (for CS)
Tube: SRO 33100 ROT380 (for CS)
Anode heat storage capacity
  • 300 kHU (200kJ)
focal spot
  • 0.6 /1.2
Ceiling Suspension
Ceiling Suspension
Collimator
  • Motorized, automatic
Ceiling height at SID 110 cm (44")
  • 2.83 m to 3.21 m (8'8.3" - 10'5.9")
See all specifications
Tube: SRO 33100 ROT380 (for CS)
Tube: SRO 33100 ROT380 (for CS)
Anode heat storage capacity
  • 300 kHU (200kJ)
focal spot
  • 0.6 /1.2
Maximum voltage
  • 150 kV
Ceiling Suspension
Ceiling Suspension
Collimator
  • Motorized, automatic
Ceiling height at SID 110 cm (44")
  • 2.83 m to 3.21 m (8'8.3" - 10'5.9")
Type
  • Four-part telescopic column
Geometry
Geometry
Source to Image Distance (SID)
  • 113 cm – 183 cm (44’’ to 72’’)
Wireless detector: SkyPlate Large
Wireless detector: SkyPlate Large
Image matrix size
  • 2330 x 2846 pixel
Type
  • Digital Csl (Cesium Iodide) flat detector
Detector size
  • 35 cm x 43 cm (14" x 17")
Active area
  • 34.48 cm x 42.12 cm (13.6" x 16.6")
Wireless detector: SkyPlate Small
Wireless detector: SkyPlate Small
Type
  • Digital Csl (Cesium Iodide) flat detector
Detector size
  • 24 cm x 30 cm (app. 10" x 12")
Image matrix size
  • 1500 x 1920 pixel
Active area
  • 22.2 cm x 28.4 cm (8.7" x 11.2")
Tube: SRO 33100 ROT380
Tube: SRO 33100 ROT380
Anode heat storage capacity
  • 300 kHU (200kJ)
Maximum voltage
  • 150 kV
focal spot
  • 0.6 /1.6
Tube: SRM 0608 ROT GS 505
Tube: SRM 0608 ROT GS 505
Anode heat storage capacity
  • 800 kHU (593kJ)
Maximum voltage
  • 125 kV (110 kV in GCF)
focal spot
  • 0.6 /0.8
Dynamic Flat Detector
Dynamic Flat Detector
Acquisition mode continious fluoroscopy
  • Up to 30 frames per second
Pixel size
  • 148 µm
Image matrix size
  • 2,874 pixel x 2,840 pixel
Detector Size
  • 43 cm x 43 cm (17"x17")
Acquisition mode pulsed fluoroscopy
  • Up to 20 per second
Generator
Generator
Power
  • 65 kW, 80kW optional
Tube voltage exposure
  • 40 - 150 kV
Fluoroscopy techniques
  • Pulsed fluoroscopy (PF), in-pulse controlled
  • Grid-controlled fluoroscopy (GCF), in-pulse controlled
Exposure techniques
  • Manual: kV-mAs or kV-mA-s
  • Automatic Exposure Control (AEC) - Intelligent Exporuse (IQX), In-Pulse controlled
  • Automatic kV reduction techniques
Tube voltage flouroscopy
  • 40 - 125 kV
Geometry
Geometry
Maximum patient weight
  • 284 kg (626 lbs) without limitations
Motorized compressor
  • 3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
Tube column movement range
  • 160 cm (63")
Table tilt angle
  • -90°/+90°
Table height
  • 62 cm - 142 cm (24.4"-59.9")
Digital vertical stand
Digital vertical stand
Vertical travel
  • 30 cm - 180 cm (11.8" - 5'11")
Detector Size
  • SkyPlate detector
Motorized tilting
  • Optional, -20° to +90°

You are about to visit a Philips global content page

Continue

You are about to visit a Philips global content page

Continue

Our site can best be viewed with the latest version of Microsoft Edge, Google Chrome or Firefox.
