Cardiac Workstation 7000
Cardiac Workstation
Cardiac Workstation 7000
Cardiac Workstation
Philips Cardiac Workstation is a breed apart from any cardiograph you may have seen, used or imagined. It is a clinical breakthrough designed to improve the way you capture, access, view, analyze, store, share and manage ECGs - to transform diagnostic cardiography.
This ergonomic leap forward streamlines workflow and delivers rich clinical information from systems across your enterprise and beyond to the point of decision. So you can diagnose and treat cardiac patients with confidence.
Clinical image gallery
Features
Streamline workflow. Accelerate care.
Three-step simplicity and touchscreen gestures help speed the delivery of consistent quality cardiac care, regardless of caregiver experience. By standardizing ECG protocols and processes throughout your health system, the Cardiac Workstation 7000 helps to reduce clerical and repetitive tasks, lighten the training load and increase user satisfaction.
So advanced, it's simple.
Illuminated 1-2-3 softkeys guide you on a smooth and seamless path to exceptionally accurate ECGs. Automate data entry with the barcode scanner/QR-code scanner or import orders from your IntelliSpace ECG or your EMR to minimize errors and quickly acquire, analyze, print, export and retrieve ECG reports with the touch of a button.
Experience ergonomic innovation.

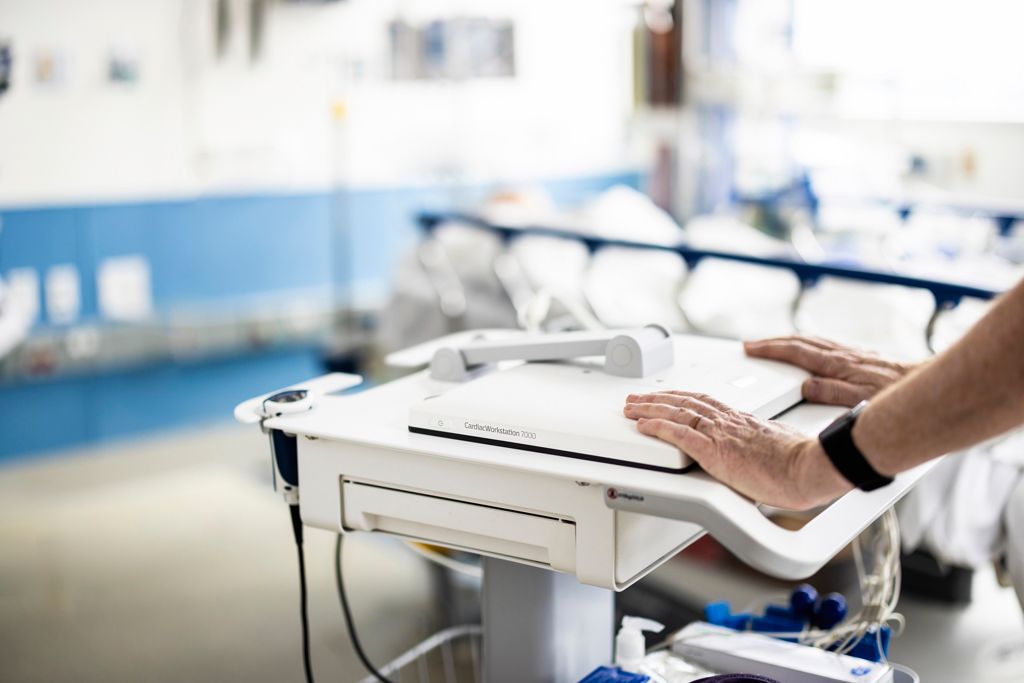

It rolls, tilts, swivels, elevates, drops, folds and turns to bring critical ECG information closer to you, while you stay close to your patients. The Cardiac Workstation 7000 is integrated into a nimble, compact, fixed or height-adjustable trolley, so you're ready to rock when you roll.
Specifications
- ECG Functions
- Simultaneous Lead Acquisition
- Up to 18 leads
- Timed ECG
- Support for pharma stress protocols
- Report Storage/Transfer
- Full fidelity at 1,000Hz of 10 seconds for up to 18 leads
- Pace Pulse Detection
- 0.02 mVms (e.g., 0.2 mV*0.1ms pulse or 0.1mV*0.2ms pulse)
- Exceeds proposed standard 5
- Philips DXL 18-Lead ECG Algorithm
- Interpretive statements
- >600 interpretive statements, Integrated pediatric analysis
- Borderline Statement Suppression
- Three configurable settings
- Reasons
- Selectable explanations of all interpretive statements
- Leads Used In Diagnosis
- Standard 12 leads plus V3R, V4R,V5R, V7, V8, and V9
- STEMI Diagnostic Aids
- Critical Values
- Highlights four conditions requiring immediate clinical attention
- Graphical ST presentation
- Two ECG reports with polar ST Maps
- Frontal and transverse planes
- Trolleys
- Height-adjustment
- 860452: Fixed height
- 860453: Adjustable height (25 cm)
- Desktop
- Open desktop creates mobile workspace
- Fleet coverage
- Trolleys also compatible with:
- Cardiac Workstation 5000
- PageWriter TC70
- PageWriter TC50
- PageWriter TC35
- Storage
- Standard storage for 400 extra ECG paper sheets
- Standard storage for cleaning wipes/gloves/electrode gel
- Optional concealed drawer
- Optional closable waste bin
- Optional wire basket
- Optional hanging leadwire holder
