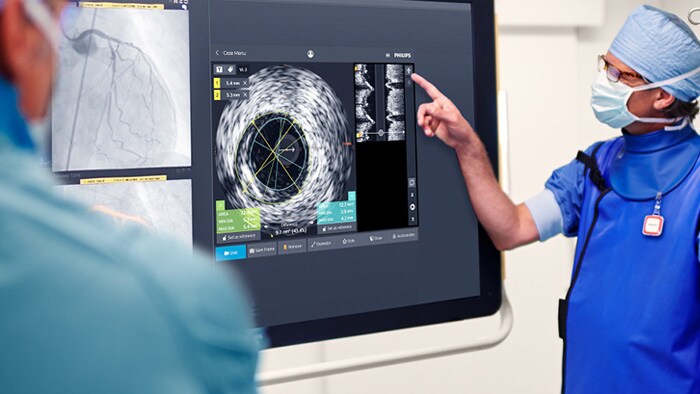

VH IVUS imaging:

Real-time lesion assessment in the cath lab

We are always interested in engaging with you.

Let us know how we can help.

1
Select your area of interest
2
Contact details

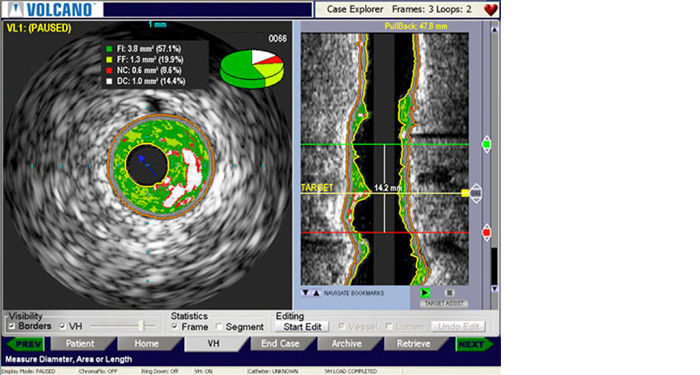

VH IVUS imaging provides a colorized tissue map of plaque composition with automated lumen and vessel measurements.*

VH IVUS technology uses advanced, proprietary spectral analysis techniques to classify plaque into four tissue types with 93-97% accuracy.1

Complete lesion assessment

VH IVUS provides a colorized tissue map of plaque composition for complete lesion assessment. Based on more than 15 years of research and 350 scientific publications, including the landmark PROSPECT trial, VH IVUS can assist you with lesion risk assessment, identification of necrotic core for optimizing stent placement, and monitoring of transplant patients for cardiac allograft vasculopathy.

vhIvus LesionAssessment

VH IVUS features

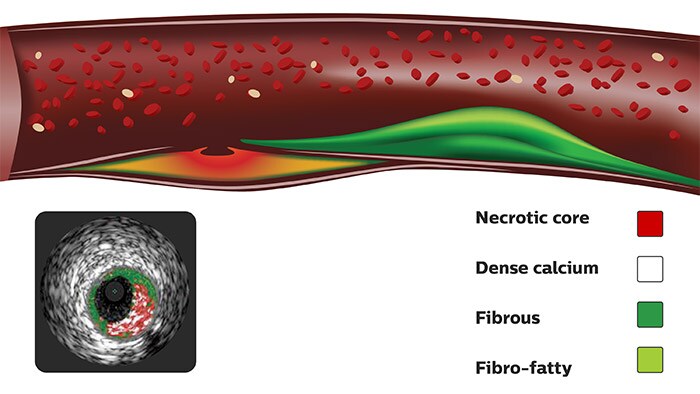

Colorized tissue map

vhIvus colorizedTissue

For complete lesion assessment, VH IVUS provides a colorized tissue map of four tissue types:

  • Necrotic core
  • Dense calcium
  • Fibrous
  • Fibro-fatty

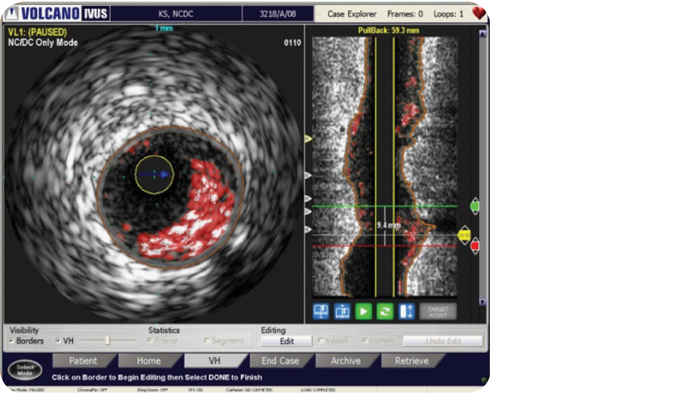

Necrotic core/dense calcium only mode

vhIvus lumen vessel measurement

For a simplified view, VH IVUS features an alternate option to display only necrotic core and dense calcium.

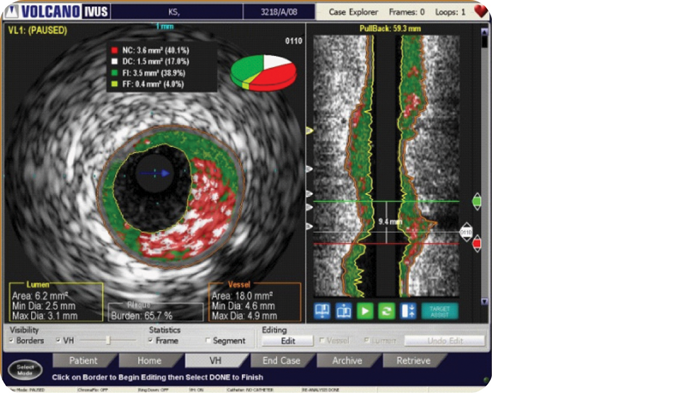

Automatic border contours

vhIvus auto borders

VH IVUS provides automatic border contours for full segment analysis.

Clinical applications for VH IVUS2

vhIvus clinical applications

Lesion risk and assessment of disease severity2

VH IVUS may help assess lesion risk:

  • VH IVUS may help change the risk profile of non-culprit, angiographically intermediate lesions.
  • VH IVUS may improve the accuracy of IVUS-based assessments of lesion significance and help guide strategies for therapy and follow-up.

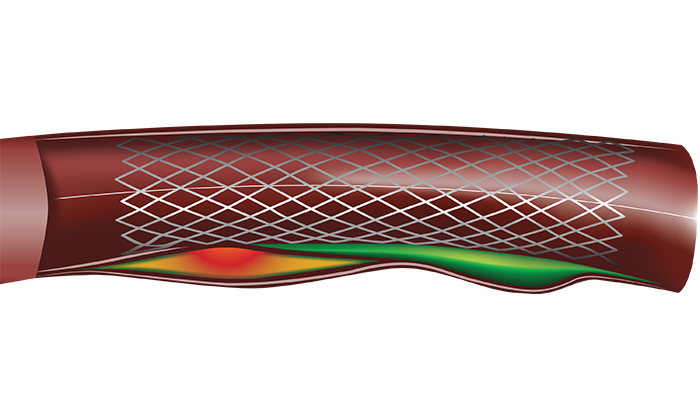

Longitudinal stent placement

Landing stent edges in necrotic core increases the risk of stent thrombosis.3 With VH IVUS, the location of necrotic core can be identified and stent placement optimized.

Grayscale IVUS vs VH IVUS


In acute myocardial infarction patients, the plaque ruptures that cause clinical events are often located proximal to the angiographic narrowing, with geographic miss resulting 60% of the time.4,5 Grayscale IVUS can identify the rupture site, and in addition VH IVUS can show how far the associated necrotic core extends.

vhIvus-color-gray

Transplant patient monitoring



VH IVUS findings of inflammatory plaque support early diagnosis of cardiac allograft vasculopathy.Results may help guide optimization of the patient’s immunotherapy regimen and follow-up strategy.

vhIvus-patient-monitor

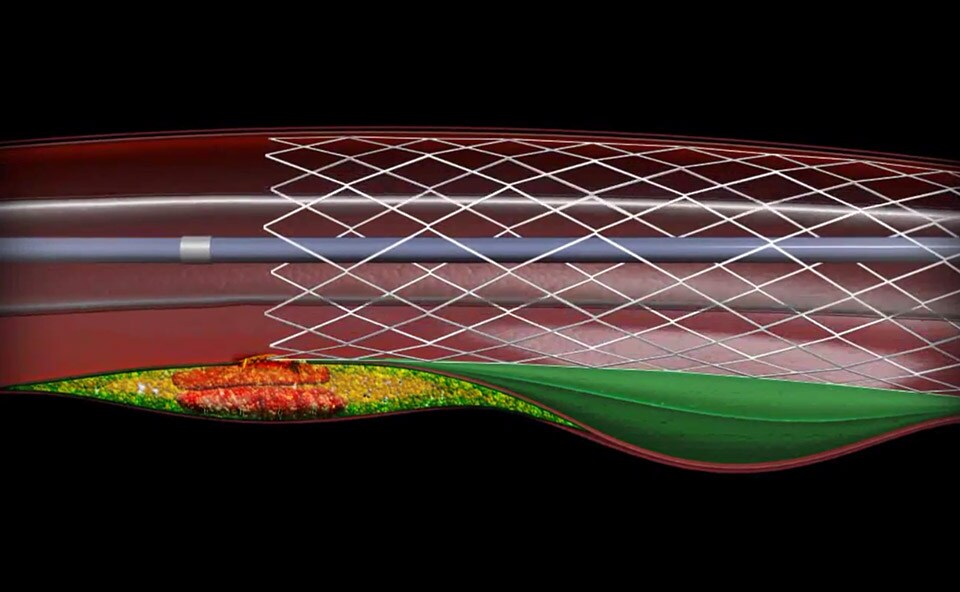

Culprit of the culprit animation

Culprit of the Culprit Animation

Related products

  •

    Eagle Eye Platinum

    The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.

  •

    Core

    The Core precision guided therapy systems offer the choice of imaging and physiology on a single integrated platform.¹ Core helps provide clarity in your approach, confidence in your decisions, and convenience in your diagnostic and interventional workflows.

  •

    Core Mobile

    Core Mobile is designed to power the future of precision guided therapy and offers the choice of imaging and physiology on a single mobile platform.¹ Core Mobile also provides clarity in your approach and confidence in your results by offering additional information during the diagnostic phase, assisting in intervention decisions.

    IGTDCOREM
  •

    Eagle Eye Platinum ST

    The Eagle Eye Platinum ST digital IVUS catheter offers a 2.5 mm tip-to-imaging distance designed to assess more of the vessel than standard catheters by providing a closer visualization of highly stenosed lesions and distal anatomy. The short tip catheter fits through all 5F guides and has all features of our top-selling Eagle Eye Platinum model, including plug-and-play simplicity, three radiopaque markers, GlyDx hydrophilic coating, and SyncVision compatibility.*

  1. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3:
  2. Stone et al. A prospective natural history study of altherosclerosis . N Engl J Med 2011;364:226-35
  3. König A, Margolis MP, Virmani, R, Holmes D, Klauss V. Technology insight: in vivo coronary plaque classification by intravascular ultrasonography radiofrequency analysis. Nat Clin Pract Cardiovasc Med. 2008;5(4):219‐229.
  4. As presented by Dariusz Dudek, Snowmass 2009.
  5. Legutko J, Jakala J, Mintz GS, et al. Radiofrequencyaintravascular ultrasound assessment of lesion coverage after angiography‐guided emergent percutaneous coronary intervention in patients with non‐ST elevation myocardial infarction. Am J Cardiol. 2013;112(12):1854-1859.
  6. Raichlin et al. Inflammatory burden of cardiac allograft coronary atherosclerotic plaque is associated with early recurrent cellular rejection and predicts a higher risk of vasculopathy progression. J Am Coll Cardiol. 2009;53:1279-1286.



*Safety and effectiveness of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established
