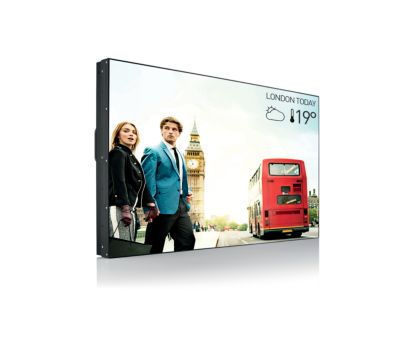

Video Wall Display

55BDL1005X/00

Video Wall Display

55BDL1005X/00

Go big

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you’re running an airport or hosting a conference. See all benefits

Unfortunately this product is no longer available

Video Wall Display

Go big

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you’re running an airport or hosting a conference. See all benefits

Go big

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you’re running an airport or hosting a conference. See all benefits

Unfortunately this product is no longer available

Video Wall Display

Go big

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you’re running an airport or hosting a conference. See all benefits

Go big

Versatile videowall display.

  • 55"
  • Direct LED Backlight
  • Full HD
  • 500cd/m²
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

OPS slot allows for PC embedding without cabling

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Remote system management through CMND

Take control of your Philips Professional Display network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    138.7  cm
    Diagonal screen size (inch)
    54.6  inch
    Panel resolution
    1920x1080p
    Optimum resolution
    1920 x 1080 @ 60 Hz
    Brightness
    500  cd/m²
    Contrast ratio (typical)
    1400:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Aspect ratio
    16:9
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Pixel pitch
    0.63 x 0.63 mm
    Display colors
    1.07 B
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 1024 x 768, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 1024, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1440 x 900, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    Video formats
    • 480i, 60Hz
    • 480p, 60Hz
    • 576p, 50Hz
    • 576i, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
    • 3840 x 2160, 30Hz
  • Connectivity

    Video input
    • Component (RCA)
    • Composite (RCA)
    • DVI-D
    • HDMI (x2)
    • VGA (Analog D-Sub)
    • DisplayPort (1.2)
    Video output
    • DisplayPort
    • DVI-I
    • VGA (via DVI-I)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Audio output
    • Audio Left/Right (RCA)
    • External speaker connector
    External control
    • IR (in/out) 3.5 mm jack
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    Other connections
    OPS
  • Convenience

    Signal loop through
    • RS232
    • VGA
    • DisplayPort
    • DVI
    • IR Loopthrough
    Ease of installation
    • Carrying Handles
    • Smart Insert
    Energy saving functions
    • Ambient light sensor
    • Smart Power
    Network controllable
    • RS232
    • RJ45
    • Card OPS RS232
    • One Wire (HDMI-CEC)
    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Screen saving functions
    Pixel Shift, Low Bright
    Tiled Matrix
    Up to 10 x 10
    Control software
    SICP / CMND&Control
    RJ45 hub
    2 ports
  • Dimensions

    Bezel thickness
    1.8 mm (A-A)
    Bezel width
    0.9mm (Even Bezel)
    Set Width
    1211.4  mm
    Set Height
    682.2  mm
    Set Depth
    98.5  mm
    Set Width (inch)
    47.69  inch
    Set Height (inch)
    26.86  inch
    Set Depth (inch)
    3.88  inch
    Product weight
    24.35  kg
    Wall Mount
    400 x 400 mm
  • Operating conditions

    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Altitude
    0 ~ 3000 m
    Relative humidity
    20 ~ 80  %
    MTBF
    50,000  hour(s)
  • Power

    Consumption (On mode)
    133W
    Standby power consumption
    <0.5W
    Energy Label Class
    G
  • Sound

    Built-in speakers
    2 x 10W (RMS)
  • Accessories

    Included accessories
    • Remote Control
    • Batteries for remote control
    • AC Power Cord
    • RS232 cable
    • Quick start guide
    • Edge alignment pins
    • Edge alignment plates
    Optional accessories
    • Edge finishing kit
    • HDBaseT OPS Receiver (CRD25)
    • Color calibration kit
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • Simplified Chinese
    • Traditional Chinese
    • English
    • French
    • German
    • Italian
    • Japanese
    • Polish
    • Russian
    • Spanish
    • Turkish
    Regulatory approvals
    • CE
    • FCC, Class B
    • UL/cUL
    • CB
    • GOST
    • EPEAT
    Warranty
    3 year warranty

What's in the box?

Other items in the box

  • Remote Control
  • Batteries for remote control
  • AC Power Cord
  • RS232 cable
  • Quick start guide
  • Edge alignment pins
  • Edge alignment plates
  • Optional accessories: Edge finishing kit
  • Optional accessories: HDBaseT OPS Receiver (CRD25)
  • Optional accessories: Color calibration kit
